Home » Shop » Connectors / Harnesses » Sumitomo » 2 Way Sumitomo HV 040 Low Keyway Grey Plug Assembly

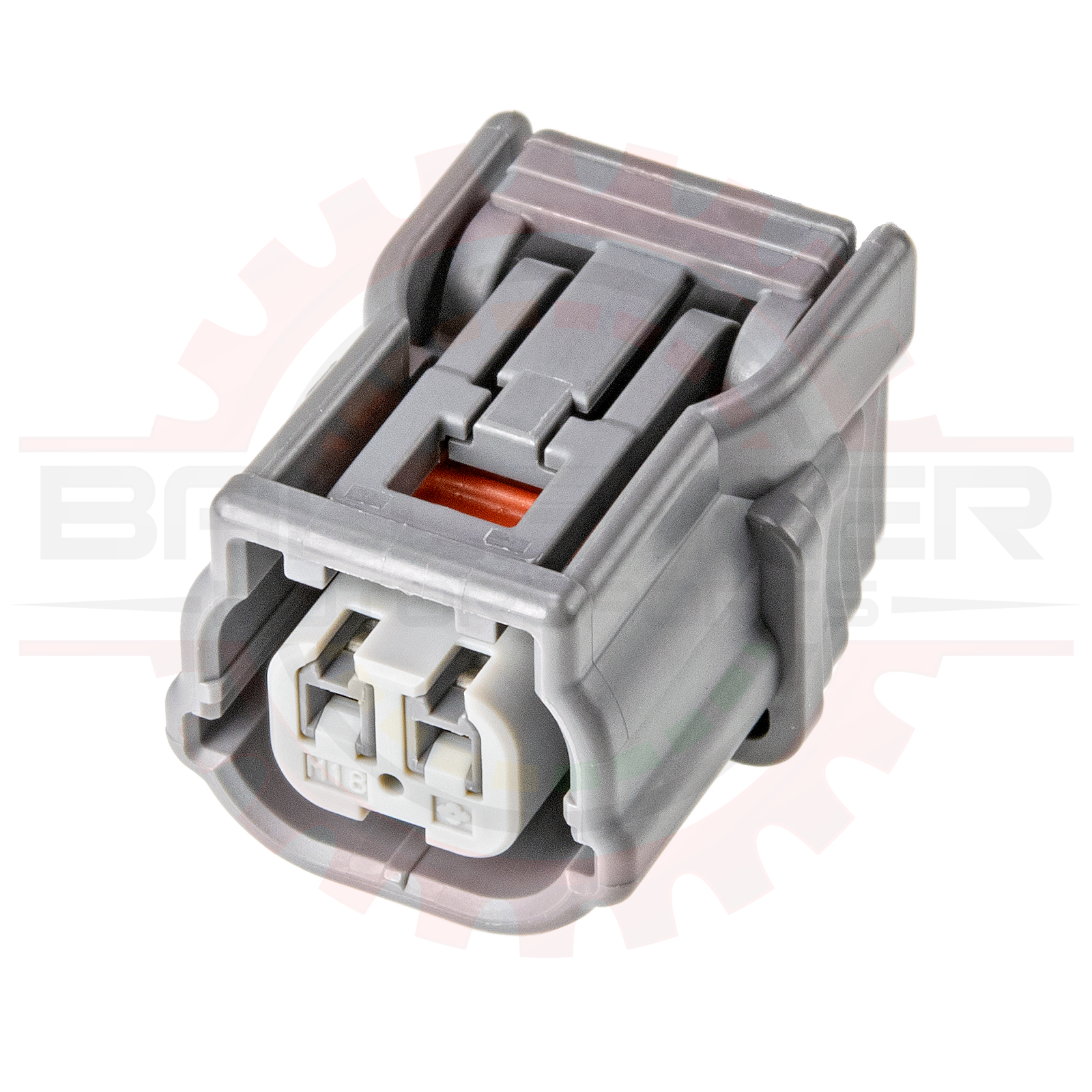

2 Way Sumitomo HV 040 Low Keyway Grey Plug Assembly	Part # CONN-100613

Pricing
1 +	$6.99
100 +	$6.49
500 +	$5.49
Information
Bmotorsports Part #	CONN-100613
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

2 Way Sumitomo HV 040 Low Keyway Grey Connector Plug Assembly. Connector and front lock Only. No terminals or seals are included.

Associated & Mating Parts

Relationship	Part #	Description
Associated Connectors
Connector Assembly	CONN-100613	2 Way Sumitomo HV 040 Low Keyway Grey Plug Assembly
Terminals	CONN-100465	Sumitomo HX 040 Female Terminal 0.3 - 0.5mm2 (22 - 20 AWG)
Seals	CONN-100552	Sumitomo HX 040 Seal 0.3 - 0.5mm2 (22 - 20 AWG)
Connector Kit	CONN-75916	2 Way Sumitomo HV 040 Low Keyway Grey Connector Plug Kit
Connector Pigtail	CONN-85916	2 Way Sumitomo HV 040 Low Keyway Grey Connector Plug Pigtail
Mating Connectors
Terminals	CONN-100558	Sumitomo HX 040 Male Terminal 0.3 - 0.5mm2 (22 - 20 AWG)
Seals	CONN-100552	Sumitomo HX 040 Seal 0.3 - 0.5mm2 (22 - 20 AWG)

Applications

Applications Include:

HONDA
Many Honda vehicles

Specifications

Parameter Value
Number of Ways 2
Gender Plug/Male
Terminal Size 1mm
Terminal Type Flat
Min. Wire Gauge 22
Max. Wire Gauge 20

This product contains the following items:
	» 1 x 2 Way Sumitomo HX HV 040 Plug Front Lock Part # CONN-100565
	» 1 x 2 Way Sumitomo HV 040 Low Keyway Grey Plug ONLY Part # CONN-100611
