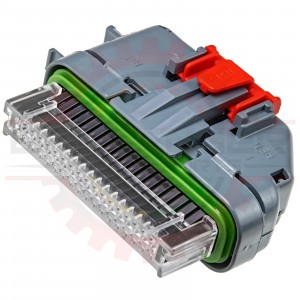

36 Way Plug Connector Assembly for AEM EMS-4, AQ-1, Harley Davidson Part # CONN-101275
36 Way Plug Connector Assembly for AEM EMS-4, AQ-1, Harley Davidson 36 Way Plug Connector Assembly for AEM EMS-4, AQ-1, Harley Davidson 36 Way Plug Connector Assembly for AEM EMS-4, AQ-1, Harley Davidson 36 Way Plug Connector Assembly for AEM EMS-4, AQ-1, Harley Davidson 36 Way Plug Connector Assembly for AEM EMS-4, AQ-1, Harley Davidson
Pricing
1 + $24.99
Information
Bmotorsports Part # CONN-101275
Availability In Stock
Shipping Weight 0.08 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

36 Way Plug Connector Assembly for AEM EMS-4, AQ-1, Harley Davidson. Connector only. No terminals and seals included.


Associated & Mating Parts

Relationship Part # Description
Associated Parts
Connector Only CONN-10127536 Way Plug Connector Assembly for AEM EMS-4, AQ-1, Harley Davidson
Terminals CONN-56356GM Delphi / Packard - 100W Micro-Pack ( Micropack ) Female Terminal ( 18 - 16 gauge )
Cavity Plug CONN-56359GM Delphi / Packard - Micropack 100W Seal (Cavity) Plug
Connector Kit CONN-7621136 Way Connector Plug 'n Pin Kit for AEM EMS-4, AQ-1, Harley Davidson
Connector Pigtail CONN-8621136 Way Connector Plug Pigtail for AEM EMS-4, AQ-1, Harley Davidson
Mating Parts
AEM EMS-4 SNSR-01777AEM EMS-4 Universal Programmable Standalone Engine Management System PN 30-6905
AEM AQ-1 SNSR-01777AEM EMS-4 Universal Programmable Standalone Engine Management System PN 30-6905

Applications

  • Connects to AEM EMS-4 for making your own harness
  • Base connector in AEM 30-2905-0
  • Connects to AEM AQ-1 Data Logger for making your own harness
  • Connects to some mid 2000's Harley Davidson motorcycles with Fuel injection
  • Control module connector for some International Navistar DT466 Engines in International trucks


Specifications

Parameter Value
Number of Ways36
GenderPlug/Male
Terminal Size1mm
Terminal TypeRound
Min. Wire Gauge18
Max. Wire Gauge16


Used In

Part # Description
CONN-7621136 Way Connector Plug 'n Pin Kit for AEM EMS-4, AQ-1, Harley Davidson
