3 Way Toyota CAM, Crank Connector Plug Kit	Part # CONN-76062

Pricing
1 +	$7.99
50 +	$7.49
100 +	Call for Pricing
Information
Bmotorsports Part #	CONN-76062
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

3 Way Toyota CAM, Crank Connector Plug Kit. Terminals and seals ARE included.

Used on a wide variety of Toyota CAM Sensor, Crank Sensor, & VVT Solenoid Applications in modern Toyota vehicles. 2GR-FE, 1AR-FE, 2AR-FE, are only some of the Toyota engines this connector will fit. Also used for other sensors and connections on Toyota vehicles. Please check the keyway pattern carefully.

Associated & Mating Parts

Relationship	Part #	Description
Associated Connectors
Terminals	CONN-100514	Sumitomo TS 025 Female Terminal 0.22 - 0.5mm2 (24 - 20AWG)
Seals	CONN-100515	Sumitomo TS 025 Seal 1.6 - 1.7mm
Connector Only	CONN-100956	3 Way Toyota CAM, Crank Connector Plug # 90980-12353
Connector Kit	CONN-76062	3 Way Toyota CAM, Crank Connector Plug Kit
Connector Pigtail	CONN-86062	3 Way Toyota CAM, Crank Connector Plug Pigtail

Applications

Applications:

2012 Camry CAM Sensor Connector
Many applications not listed

Specifications

Parameter Value
Number of Ways 3
Gender Plug/Male
Terminal Size 0.63mm
Terminal Type Flat
Min. Wire Gauge 24
Max. Wire Gauge 20

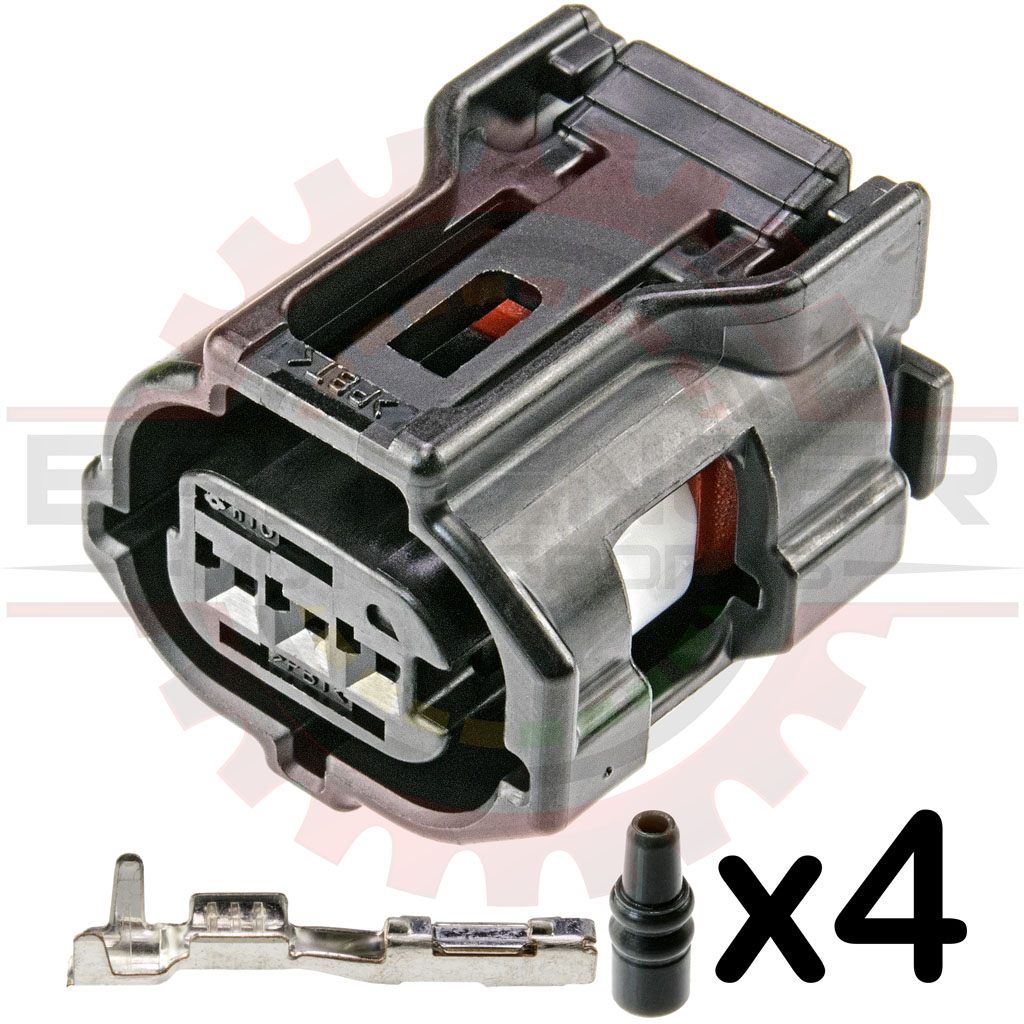

This product contains the following items:
	» 4 x Sumitomo TS 025 Female Terminal 0.22 - 0.5mm2 (24 - 20AWG) Part # CONN-100514
	» 4 x Sumitomo TS 025 Seal 1.6 - 1.7mm Part # CONN-100515
	» 1 x 3 Way Toyota CAM, Crank Connector Plug # 90980-12353 Part # CONN-100956
