Crimp Die set for Deutsch/Amphenol DTM/ATM / Size 20 Stamped and Formed terminals, comparable to DTT-20-00 Part # TOOL-00922

Crimp Die set for Deutsch/Amphenol DTM/ATM / Size 20 Stamped and Formed terminals, comparable to DTT-20-00
Pricing
1 + $314.99
Information
Bmotorsports Part # TOOL-00922
Availability Special Order
Shipping Weight 0.4 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

This is the highest quality hand tool that can be purchased for the terminals listed below.

If you wish to buy more than the available quantity listed, please email us at sales@bmotorsports.com so that we can assist you with your order.

Once out of stock, the part will be listed as "Special Order" and is subject to 8-12 weeks standard lead time.
The part may however already be on order and due to arrive sooner, feel free to contact us for more details.

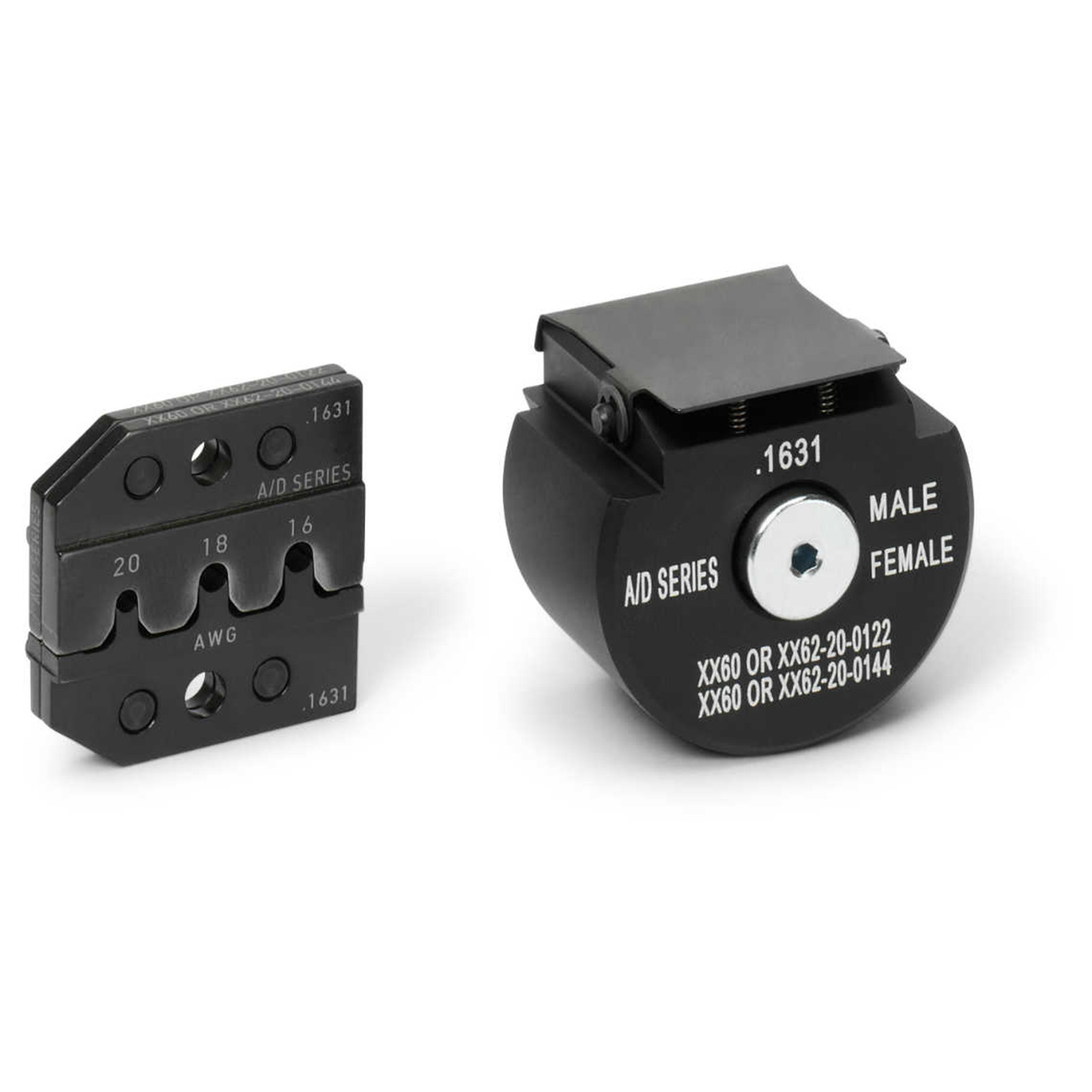

Complete box with 1 die set, 1 locator and spare parts for crimping of Male and Female Deutsch/Amphenol terminals (1060-20-0122 / AT60-20-0122, 1060-20-0144 / AT60-20-0144, 1062-20-0122 / AT62-20-0122, 1062-20-0144 / AT62-20-0144. 1060-20-0177, 1062-20-0177)

For use with Terminals:
CONN-100025
CONN-100088
CONN-100121
CONN-100122
Must be used with the following crimp handles:
Production Quality Hand Crimper

Example pictures of crimper with dies are below. Crimper is sold seperately.





Associated & Mating Parts

Relationship Part # Description
DTM Size 20 Stamped & Formed Socket Female Terminal CONN-100025Deutsch DTM Size 20 Stamped & Formed Socket Female Terminal, 0.5mm2 - 1.0mm2 ( 20 - 16 AWG )
DTM Size 20 Stamped & Formed Socket Male Terminal CONN-100088Deutsch DTM series Size 20 Stamped & Formed Pin Male Nickel Plated Terminal, 0.5mm2 - 1.0mm2 ( 20 - 16 AWG )
Size 20 Stamped & Formed Pin Female Gold Plated Terminal CONN-100121Deutsch Size 20 Stamped & Formed Socket Female Gold Plated Terminal, 0.35mm2 - 1.0mm2 ( 22 - 16 AWG )
Size 20 Stamped & Formed Pin Male Gold Plated Terminal CONN-100122Deutsch Size 20 Stamped & Formed Pin Male Gold Plated Terminal, 0.35mm2 - 1.0mm2 ( 22 - 16 AWG )
