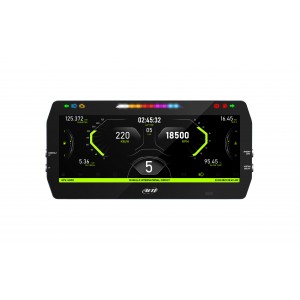

    AiM MXT Strada 1.3 Dash Part # SNSR-05046

    AiM MXT Strada 1.3 Dash AiM MXT Strada 1.3 Dash AiM MXT Strada 1.3 Dash
    1 + $1,799.00
    Bmotorsports Part # SNSR-05046
    Availability In Stock
    Shipping Weight 0 Lbs.
    Shipping Location VA   (Shipping Info)
    Harness Type
    Ship Estimator Quantity:

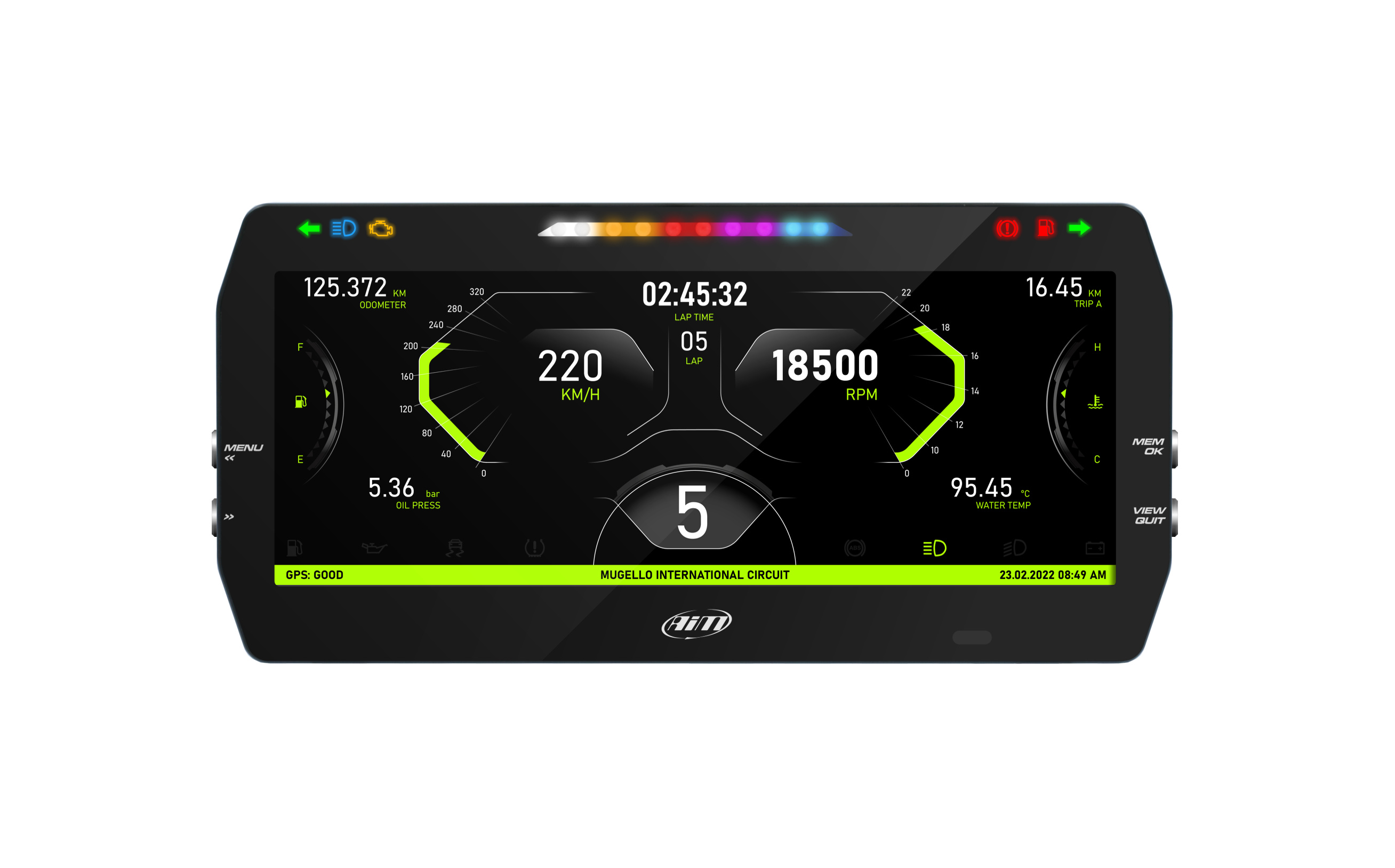

    The MXT 1.3 Strada features a 10" wide colour dash display offering great visual impact and is configurable to show data coming from your vehicle's ECU.

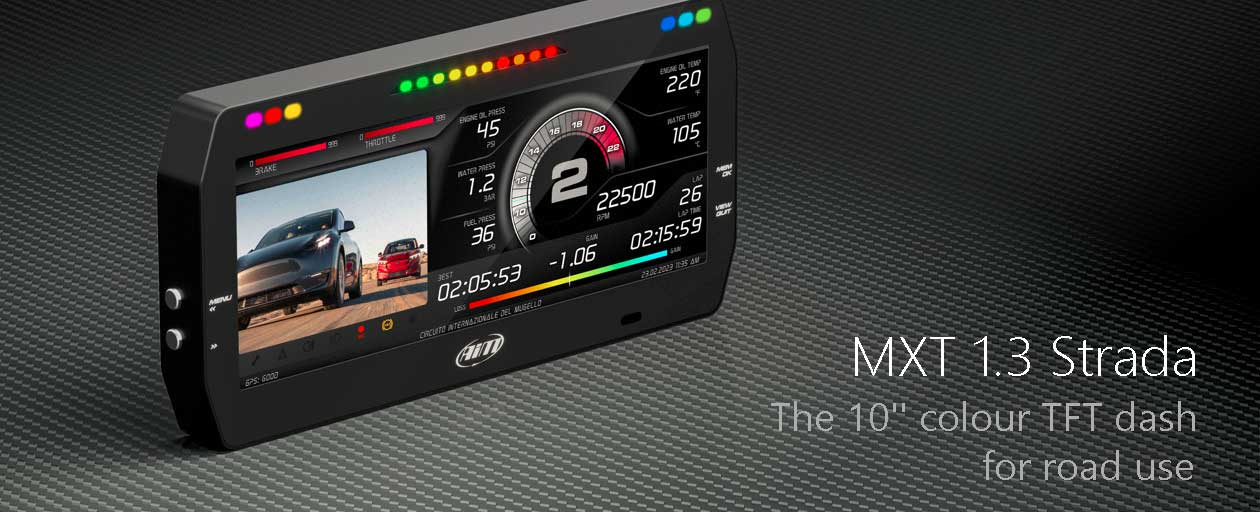

    AiM MXT 1.3 Strada 10" TFT Dash Display with Road Icons

    The MXT 1.3 Strada has an integrated shift array, configurable multicolour alarms, drag and drop multi-page configuration, Wi-Fi and USB connectivity, GPS09 Module, analogue and digital inputs, digital outputs, motorsport connectors, 4GB of internal memory, 1000Hz per channel sampling and support for over 1000 ECU connections. MXT 1.3 Strada samples data coming from your ECU, the GPS09 Module, 8 fully configurable analogue inputs, 6 digital inputs, predefined math channels and a second CAN. Performance and data acquired can also be incremented adding up to eight expansion modules.


    Freely configurable pages

    You can define up to 8 custom pages, choosing among a selection of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages can be managed pushing one or two pushbuttons.




    A high-contrast 10" TFT display identifies MXT 1.3 Strada at first glance. An ambient light sensor keeps the backlight at optimum brightness levels.


    Flexible alarms & custom street icons

    MXT 1.3 features five configurable RGB alarm LEDs: you choose the conditions, and you choose the colours. Select a solid alarm or flashing one - and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities. Furthermore, you can select the street icons you need from the wide list you will find in "Race Studio 3 - Icons Management" and set them up the way you prefer, or according to your needs. You will also be able to upload and set up your own customised icons.


    Two digital outputs

    MXT 1.3 Strada features two digital outputs. The two digital outputs (Dout) are LOW SIDE type (switch to ground): they can be configured to be turned on/off depending on the value of the analogue or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.


    Camera inputs, also for mirror camera

    Two analogue camera inputs are available to swap your display into a mirror camera, through a pushbutton command or event management.


    Integrated Shift Light Array

    Choose from a host of advanced multicoloured RGB shift light patterns that can be customised as you like, and for each unique gear when required.


    Expand Your System

    Using the built-in CAN bus, you can add expansion modules to the MXT 1.3 Strada to increment the performance and the data acquired:


    GPS09 Module

    Thanks to GPS09 Module (included in the kit) and its Race Studio 3 software, you can immediately get lap times and all data needed for engine tuning as well as for improving driving technique.


    Channel Expansion

    It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.


    TC Hub

    It adds 4 K thermocouples.


    LCU-One CAN

    Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.


    Memory Module

    The Memory Module is a small SD Card holder that can be connected via CAN bus to your AiM Strada logger in order to record the data during your tests.

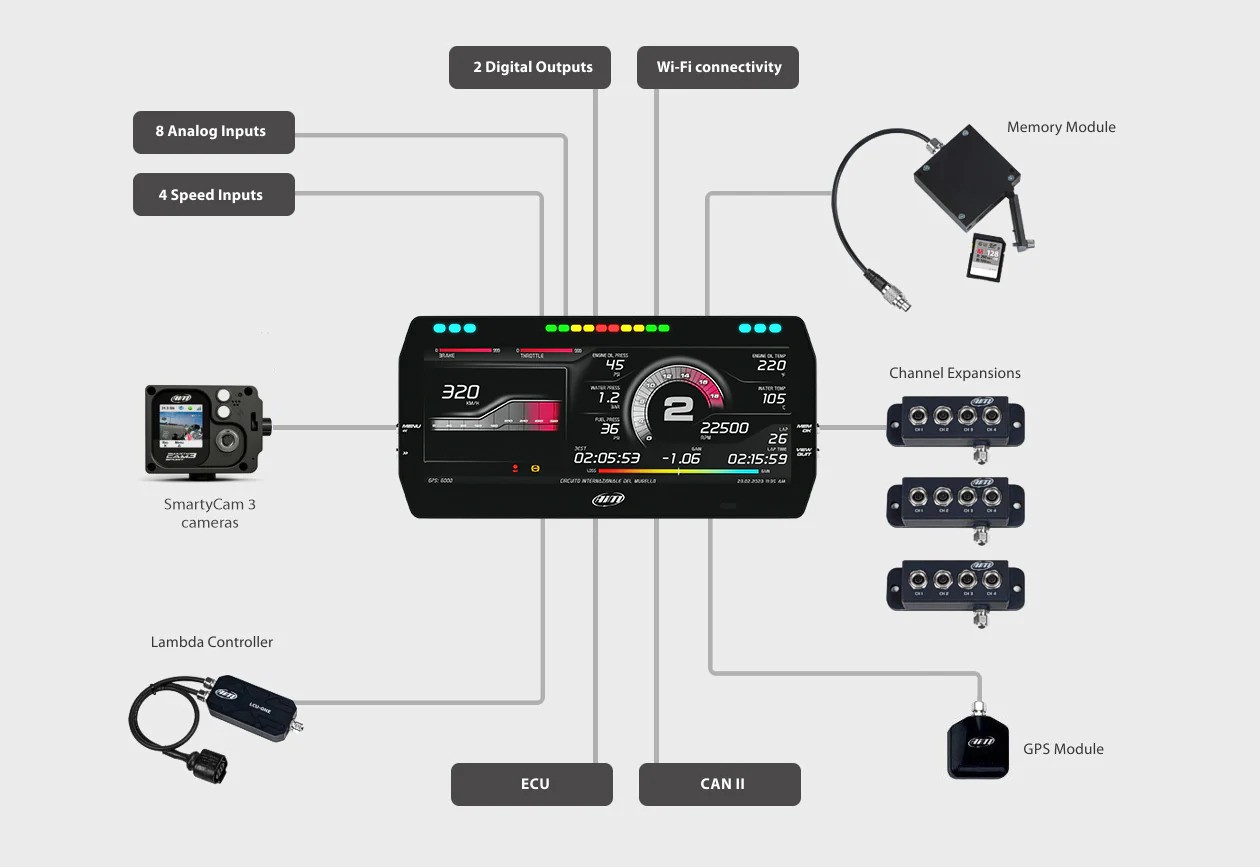

    Connection Example

    These are only some of the items that can be added to our MXT 1.3 Strada for incrementing the performance and the data acquired:




    10” TFT
    1280x480 pixels
     Ambient light sensor
     Alarm LEDs
    6 RGB freely configurable
     Shift lights
    10 integrated freely configurable RGB LEDs
     CAN connections
     ECU connections
    CAN, RS232 or K-Line
     ECU compatibility
    + 2,000 industry leading ECUs
     Expansion CAN connection
    GPS Module, Channel Expansion, TC Hub, Lambda Controller,
    SmartyCam 3 Series
     Analog/digital inputs
    8 fully configurable, max 500 Hz each
     Digital inputs
    1 speed input, coil RPM input
     Digital outputs
    1 (1 A max)
     Second CAN
    Anodized Aluminum

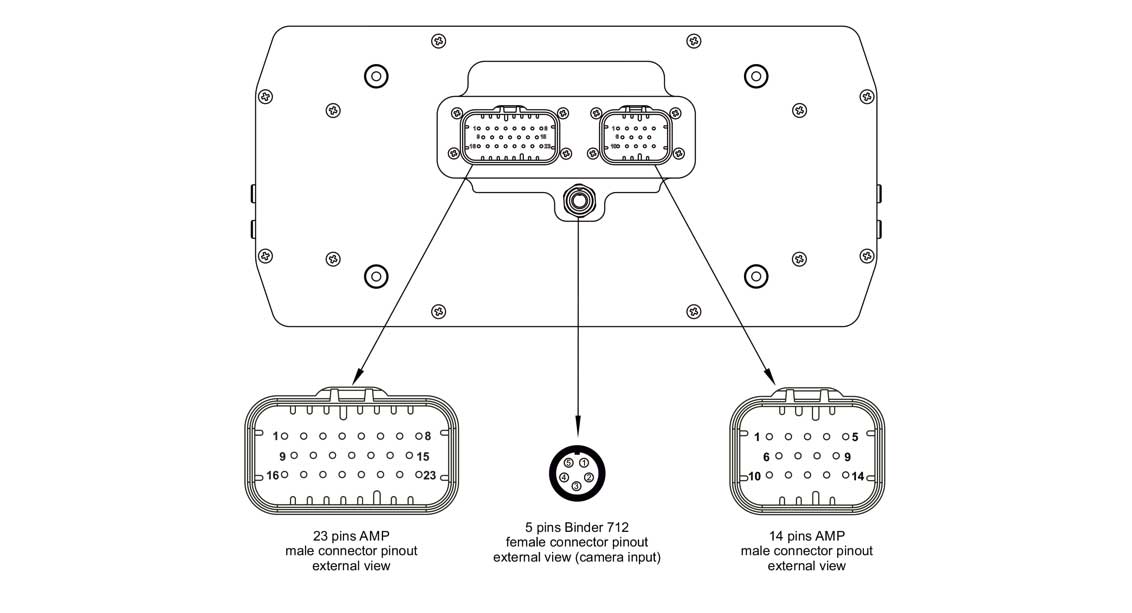

    2 AMPSEAL connectors + 1 Binder connector
     Power consumption
    450 mA

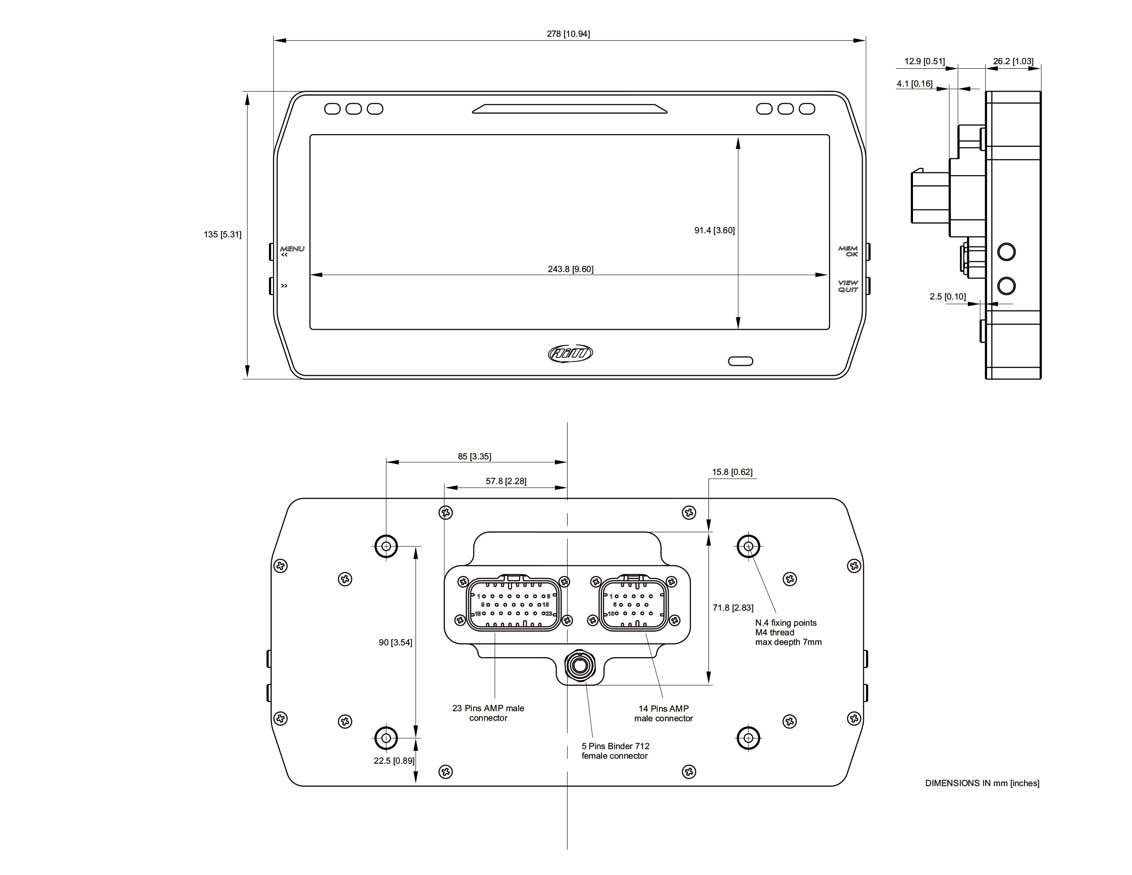

    278x135x43.2 mm
    1,100 g




    In the Box

    • MXT 1.3 Strada
    • GPS Module with Cable
    • USB Cable
    • 37 Pin Standard harness
    • AiM Sticker
