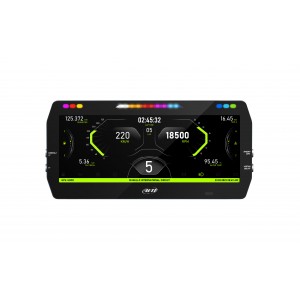

    AiM MXT 1.3 Dash Part # SNSR-05045

    AiM MXT 1.3 Dash AiM MXT 1.3 Dash AiM MXT 1.3 Dash AiM MXT 1.3 Dash AiM MXT 1.3 Dash
    Pricing
    1 + $3,199.00
    Information
    Bmotorsports Part # SNSR-05045
    Availability In Stock
    Shipping Weight 0 Lbs.
    Shipping Location VA   (Shipping Info)
    Options
    Icons
    Mounting Option
    Ship Estimator Quantity:

    Description

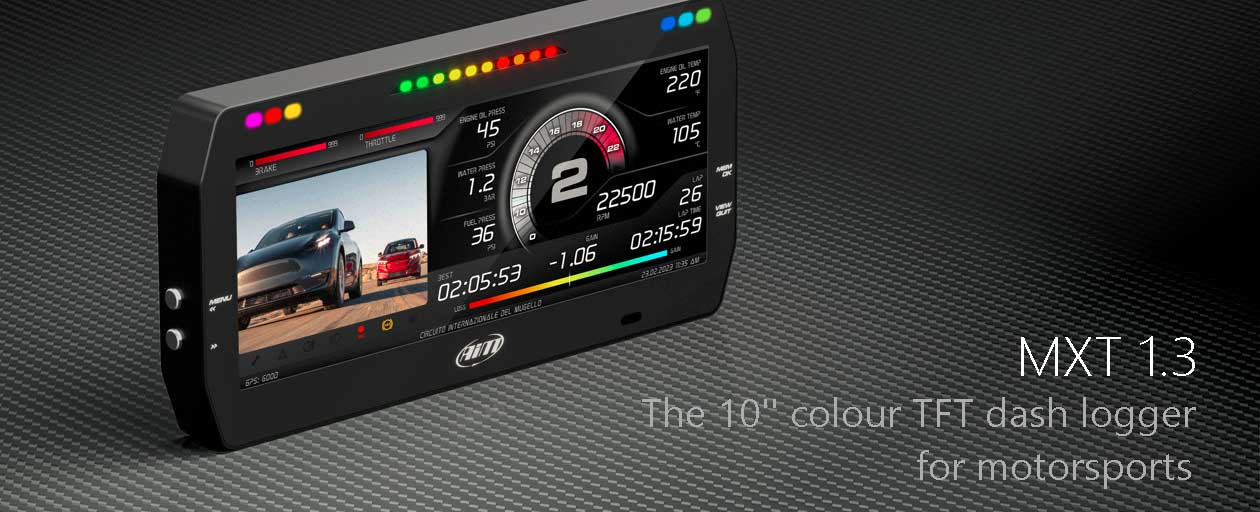

    The MXT 1.3 has an integrated shift array, configurable multicolor alarms, drag and drop multi page configuration, Wi-Fi and USB connectivity, GPS09 Module, analog and digital inputs, digital outputs, Motorsport connectors, 4 GB of internal memory, 1,000Hz per channel sampling and support for over 1,000 ECU connections..

    MXT 1.3 samples data coming from your ECU, the GPS09 Module, 8 fully configurable analog inputs, 6 digital inputs, predefined math channels and second CAN. Performance and data acquired can also be incremented adding up to eight expansion modules.



    Freely configurable pages

    You can define up to 8 custom pages, choosing among a selection of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages can be managed pushing one or two pushbuttons.



    Display

    A high contrast TFT display identifies MXT 1.3 at the first glance. An ambient light sensor keeps the backlight at optimum brightness levels.



    Flexible alarms & custom street icons

    MXT 1.3 features five configurable RGB alarm LEDs: you choose the conditions, you choose the colors. Select a solid alarm or flashing one - and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities. Furthermore you can select the street icons you need among the wide list you will find in "Race Studio 3 - Icons Management" and set them up the way you prefer or according with your needs. Any of them is fully configurable and if this shouldn't be enough, you will be able to upload and set up your own customized icons.



    Two digital outputs

    MXT 1.3 features two digital outputs. The two digital outputs (Dout) are LOW SIDE type (switch to ground): they can be configured in order to be turned on/off depending on the value of the analog or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.



    Camera inputs, also for mirror camera

    Choose from a host of advanced multicoloured RGB shift light patterns that can be customized as you like, and for each unique gear when required.



    Expand Your System

    Using the built-in CAN bus, you can add expansion modules to the MXT 1.3 to increment the performance and the data acquired:



    GPS09 Module

    Thanks to GPS09 Module (included in the kit) and its Race Studio 3 software, you can immediately get laptimes and all data needed for engine tuning as well as for improving driving technique.



    Channel Expansion

    It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.



    TC Hub

    It adds 4 K thermocouples.



    LCU-One CAN

    Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.



    SmartyCam 3 cameras

    The on-board cameras that overlays on videos the data sampled by your logger.



    Memory Module

    The Memory Module is a small SD Card holder that can be connected via CAN bus to your AiM logger in order to record the data during your tests.

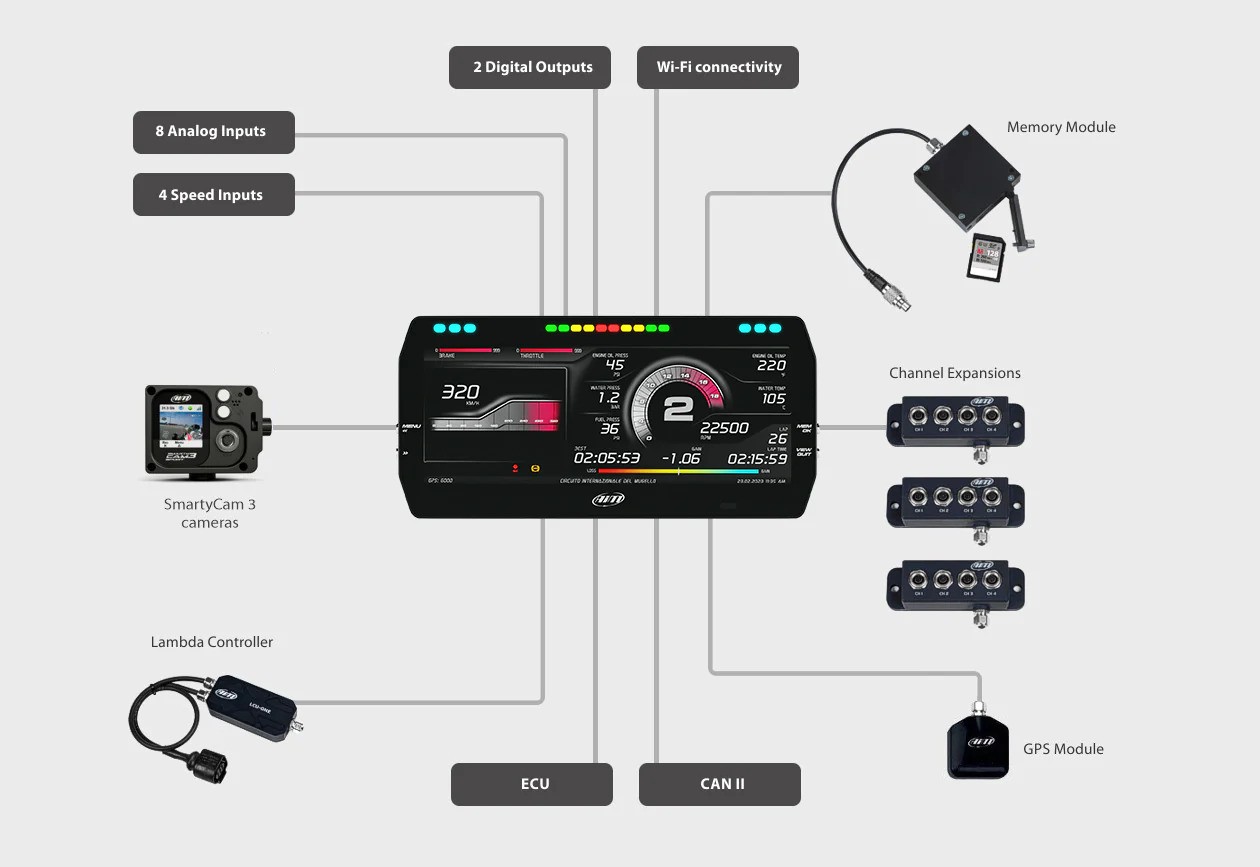

    Connection Example

    These are only some of the items that can be added to our MXT 1.3 for incrementing the performance and the data acquired:.




    Specifications

     Display
    10” TFT
     Resolution
    1280x480 pixels
     Contrast
    1,100:1
     Brightness
    800cd/m2
     Ambient light sensor
    Yes
     Alarm LEDs
    6 RGB freely configurable
     Shift lights
    10 integrated freely configurable RGB LEDs
     CAN connections
    3
     ECU connections
    CAN, RS232 or K-Line
     ECU compatibility
    + 2,000 industry leading ECUs
     Expansion CAN connection
    GPS09c, Channel Expansion, TC Hub,
    Lambda Controller, SmartyCam 3 Series
     Inertial platform
    Internal 3 axis ±5G accelerometer + 3 axis gyro max 100 Hz
     Analog/digital inputs
    8 fully configurable, max 500 Hz each
     Digital inputs
    4 Speed inputs, lap signal, coil RPM input
     Digital outputs
    2 (1 A max each)
     Second CAN
    Yes
     Wi-Fi connection
    Yes
     Internal memory
    4 GB
     Body
    Anodized Aluminum
     Pushbuttons
    Metallic

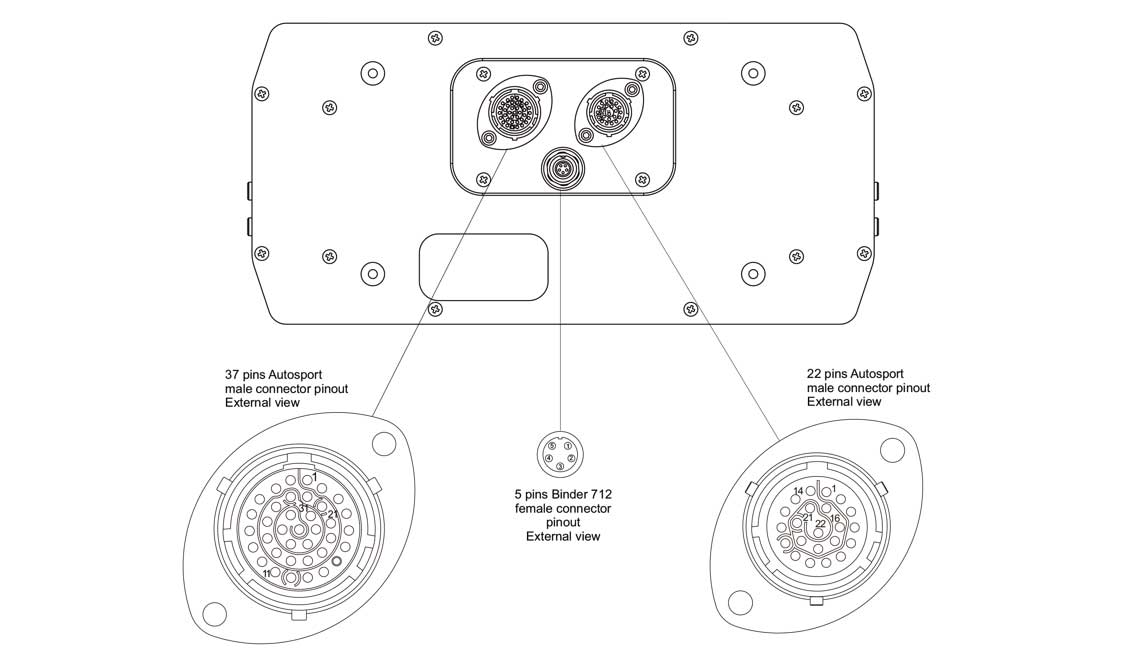

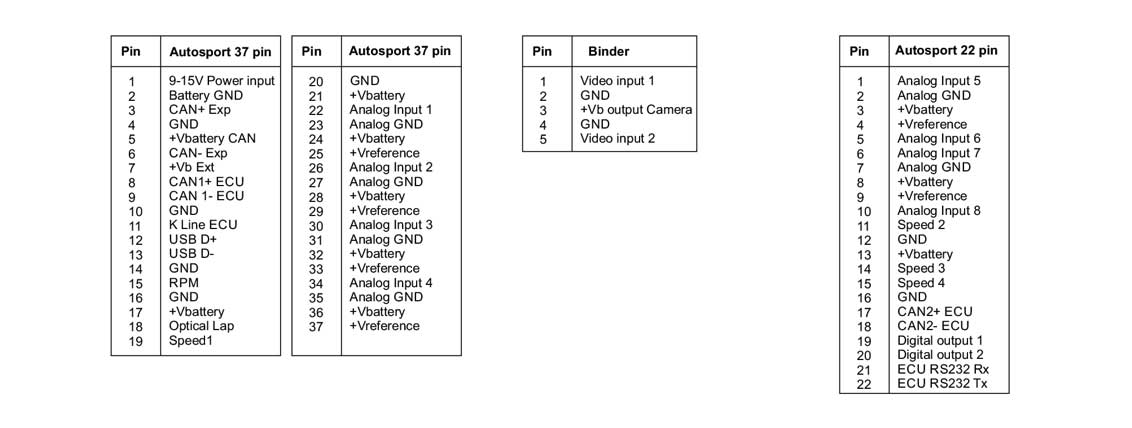

     Connectors
    2 Motorsport connectors + 1 Binder connector
     Power consumption
    450 mA

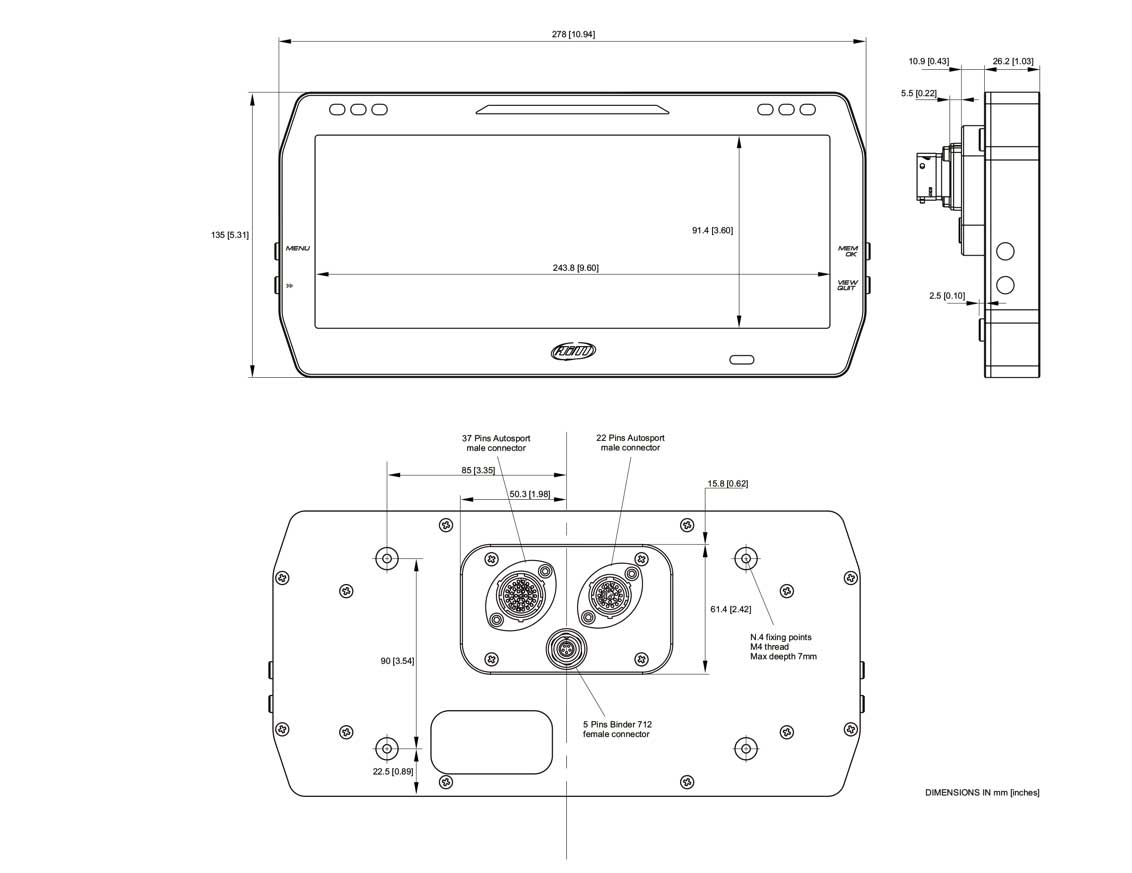

     Dimensions
    278x135x43.2 mm
     Weight
    1,200 g
     Waterproof
    IP67







    In the Box

    • MXT 1.3
    • GPS Module with cable
    • USB Cable
    • 37 Pin Standard harness
    • AiM Sticker
