    TE High Current 75A Relay Kit Part # CONN-35000

    TE High Current 75A Relay Kit TE High Current 75A Relay Kit
    Pricing
    1 + $59.00
    10 + $55.99
    25 + $53.99
    Information
    Bmotorsports Part # CONN-35000
    Availability In Stock
    Shipping Weight 0.48 Lbs.
    Shipping Location VA   (Shipping Info)
    Options
    Connector Option
    Ship Estimator Quantity:

    Description

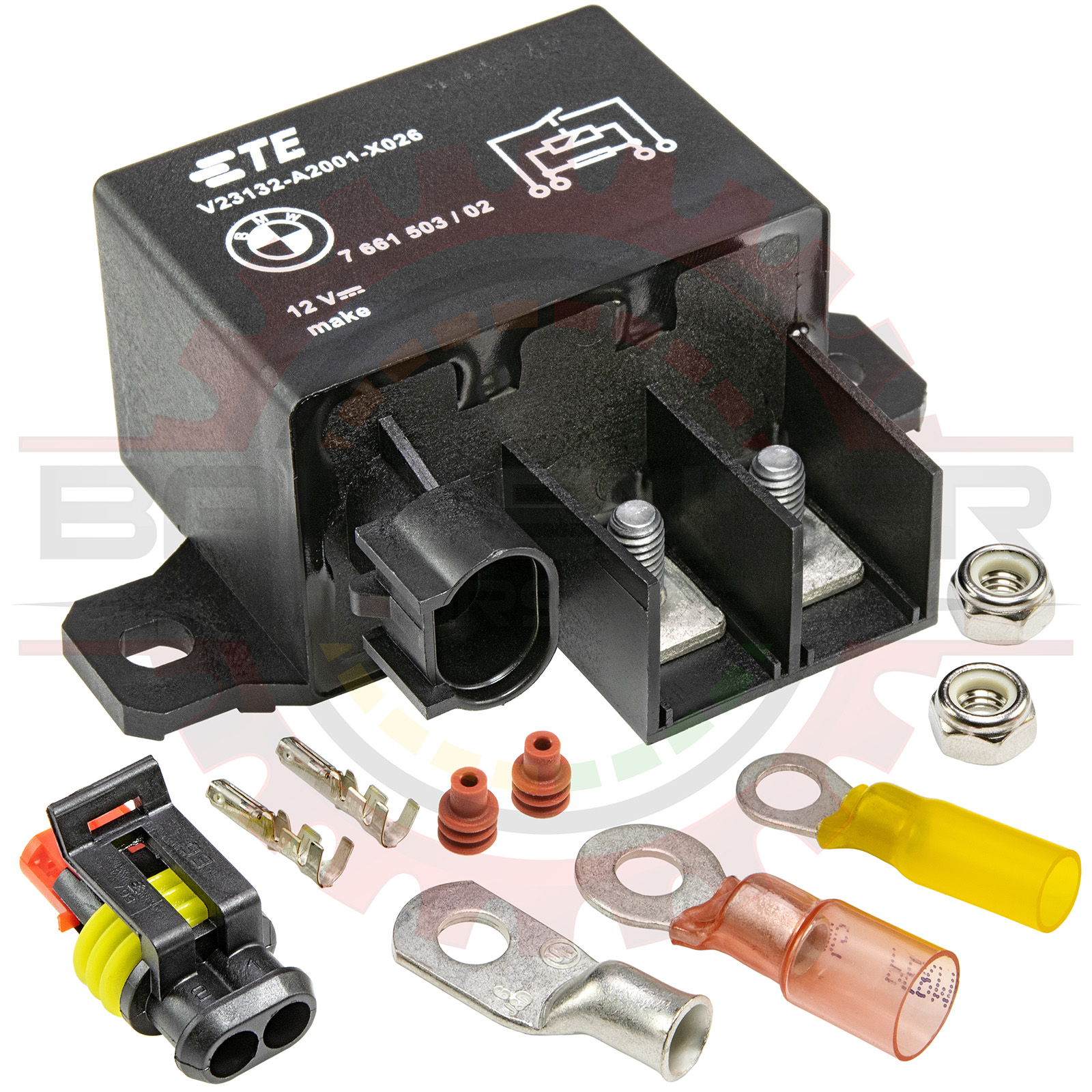

    TE High Current 75A Relay Kit

    Power your EHPS/Electric power steering, high current coolant pump (CWA400), glow plugs, preheating systems, loading ramps, trailer jacks or other current hungry devices with this relay kit offering!
    Choose your 1/4" ring terminal option via the dropdown selection, ranging from 12-6AWG. Nylock nuts are included to snug them down, as well as the main 2 position superseal connector kit to control the solenoid. Additional ring terminals are available, found in the mating parts tab. Pigtail also available in mating parts tab.

    the 75A continuous rating is a very conservative figure, as this relay is capable of 180A @ 25°C with a 25mm² (4 AWG) cable, which falls to 135A @ 85°C, and for 16mm² (6 AWG) cable, 130A @ 23°C and 120A @ 85°C

    Product Highlights

    • Limiting continuous current 130A @ 85°C
    • Current Switching ability up to 300A
    • Suitable for voltage levels up to 24VDC
    • Heat, moisture and vibration resistant
    • Minimal contact resistance

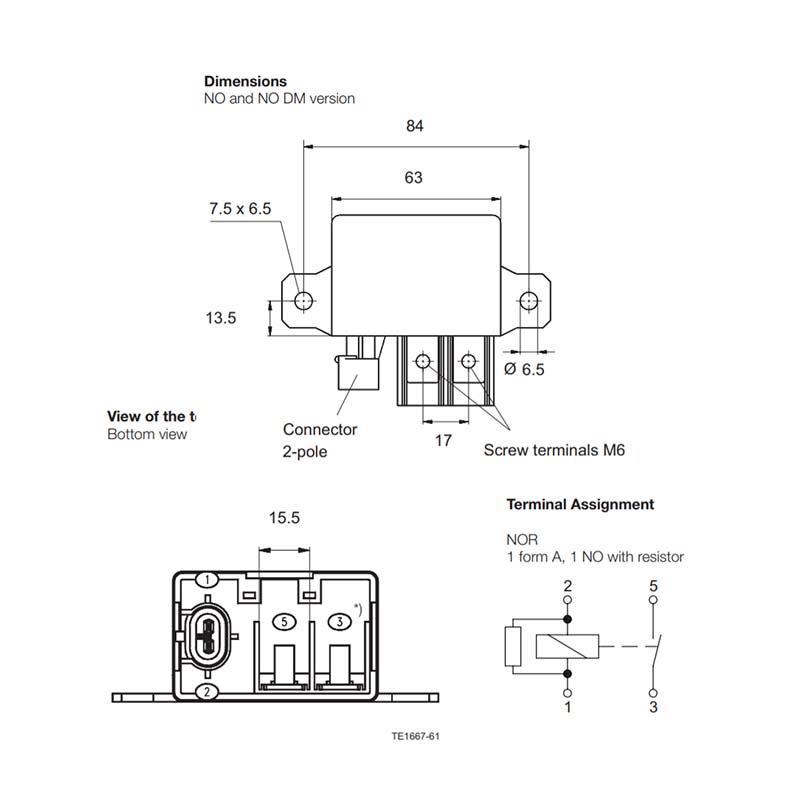

    Specifications

    Normally Open High Current TE Relay
    Parameter Value
    Terminal Size1.5mm
    Terminal TypeFlat
    Min. Wire Gauge18
    Max. Wire Gauge15


    Applications

    • racecar
