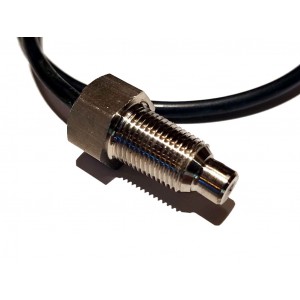

The Autosport Labs Linear Temperature Sensor offers a linear response of 10mv/C for easy calibration with a simple conversion formula.
Only ground, 5v, and output connections are required, with no pullup resistor needed – similar to other active sensors. The sensor is suitable for fluids such as oil, coolant and water.
- Thread pitch: 1/8″ NPT
- Body: Stainless Steel
- 13mm (1/2″) hex head
- Wiring: 18″ flying leads
- Voltage supply: 3-5V
- Wiring color codes – Green: Ground; Red: 3-5V; Yellow: Signal Output
- Pull-up resistor: None (Active element)
- Operational temperature range: -40 to 150C
- Calibration: Linear response 10mv/C; 0.5V at 0 degrees C
