    AiM MXP Dash Logger Part # SNSR-06160

    AiM MXP Dash Logger AiM MXP Dash Logger AiM MXP Dash Logger AiM MXP Dash Logger AiM MXP Dash Logger
    Pricing
    1 + $2,599.00
    Information
    Bmotorsports Part # SNSR-06160
    Availability Special Order
    Shipping Weight 4.2 Lbs.
    Shipping Location VA   (Shipping Info)
    Options
    GPS cable length
    Expansion Harness Option
    Ship Estimator Quantity:

    Description

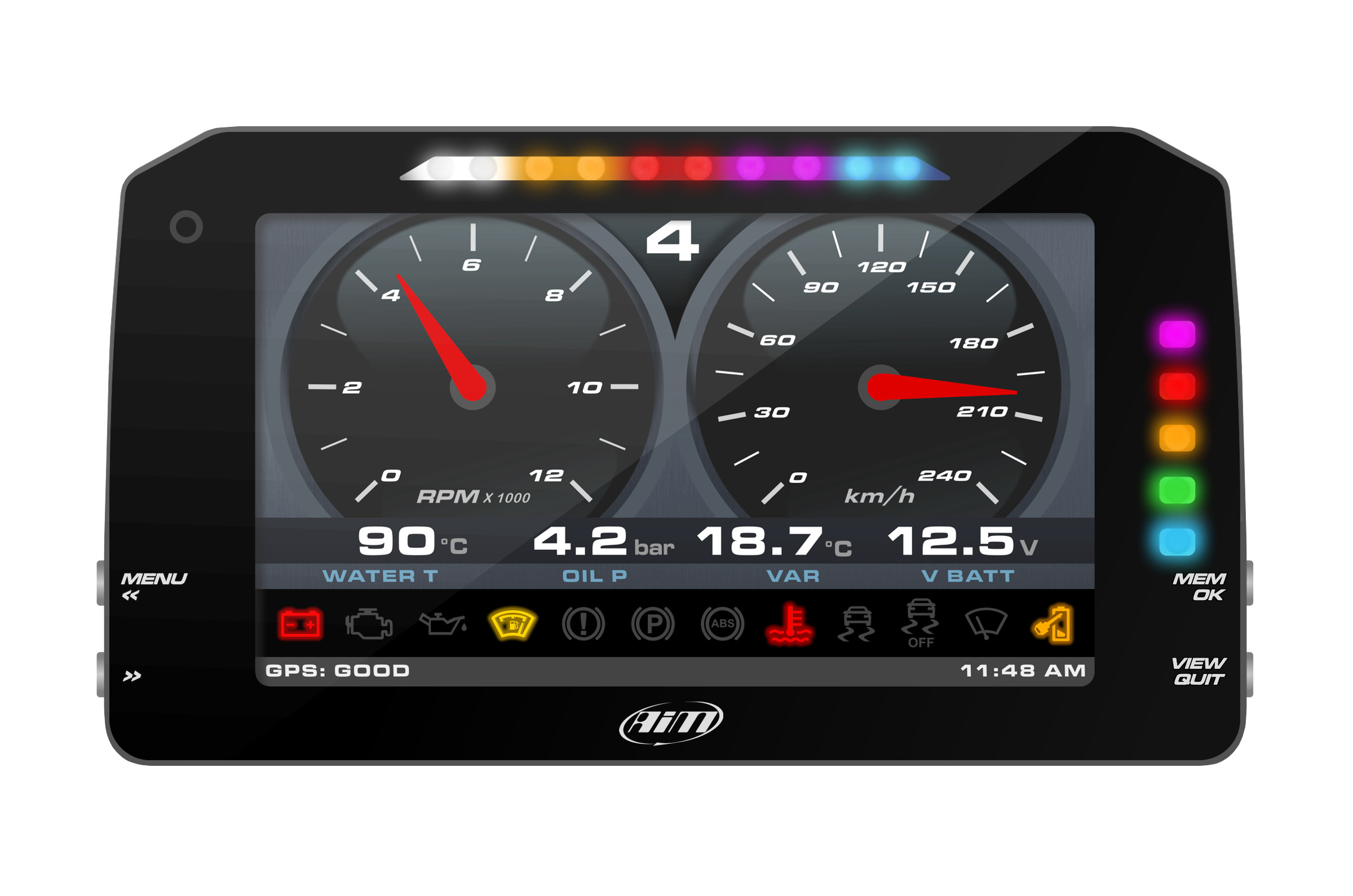

    AiM MXP Dash Logger
    A wide range of data sources
    MXP is the new AiM dashlogger designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS08 Module included in the kit, analog/digital inputs and predefined math channels.
    Performance and data acquired can also be incremented adding up to eight expansion modules.
    Its 6" display has been specifically designed for small cockpits installation.
    ECU
    connection
    Analog/digital
    inputs
    Internal
    accelerometer
    and gyro
    Math
    channels
    Second
    CAN
    GPS08 Module
    CAN output
    With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.

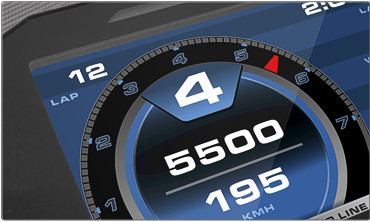

    High contrast TFT display
    A high contrast TFT display identifies MXP at the first glance.
    An ambient light sensor keeps the backlight at optimum brightness levels.
    Freely configurable pages
    You can define all the custom pages you wish, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units.
    Swapping between pages can be managed pushing one or two pushbuttons.
    Flexible alarms

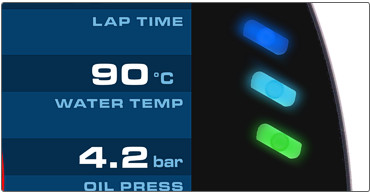

    MXP features five configurable RGB alarm LEDs: you choose the conditions, you choose the colors.
    Select a solid alarm or flashing one - and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities.
    Five configurable RGB alarm LEDs
    Two digital outputs
    MXP features two digital outputs.
    The two digital outputs (Dout) are LOW SIDE type (switch to ground): they can be configured in order to be turned on/off depending on the value of the analog or digital inputs.
    They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.
    Digital outputs
    More info
    Integrated shift light array
    Choose from a host of advanced multicoloured RGB shift light patterns that can be customized to your liking, and for each unique gear when required.

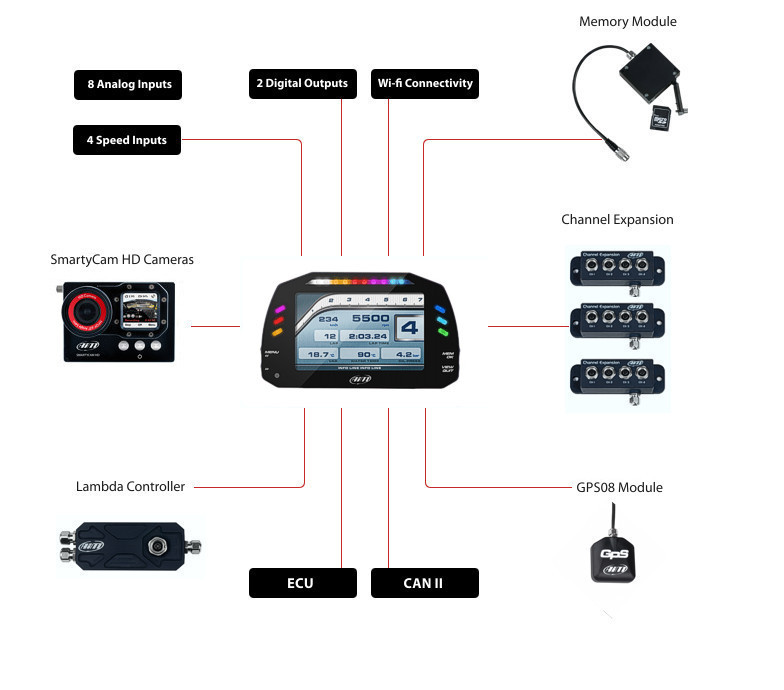

    Expand the system, according to your needs
    Using the built-in CAN bus you can add expansion modules to visualize additional info:
    GPS Module GPS08 Module
    Thanks to GPS08 Module and Race Studio 3 software, you can immediately get laptimes and all data needed for engine tuning as well as for improving driving technique.
    Channel Expansion Channel Expansion
    It permits to add 4 0-5Volt analog channels.
    TC Hub TC Hub
    It adds 4 K thermocouples.
    LCU-One Lambda Controller LCU-One Lambda Controller
    Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data, lambda value and exhaust gas temperature, allows to perfectly tune the carburetion.
    SmartyCam HD cameras SmartyCam HD cameras
    The on-board cameras that overlays on videos the data sampled by your logger.
    Memory Module Memory Module
    The Memory Module is a small SD Card holder that can be connected via CAN bus to your AiM logger in order to record the data during your tests.
    Connection
    examples

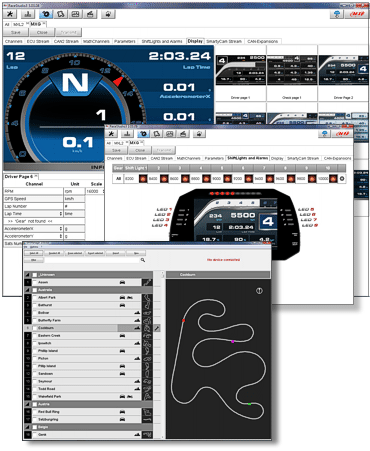

    Race Studio 3, the almighty software
    Race Studio 3 is the heart of your MXP, managing all your activities related to:

    Configuration
    With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.
    Race Studio 3
    Analysis

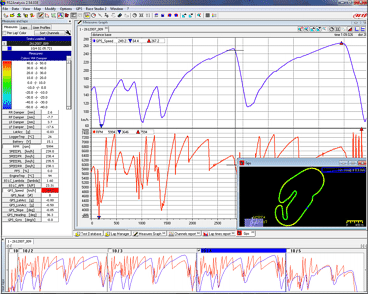

    With Race Studio 3 you can also analyse all data recorded by MXP and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.
    Race Studio 3
    Download Race Studio 3
    WiFi connectivity
    Configure, calibrate and download your data wirelessly over a secure 802.11 WiFi connection.


    Specifications

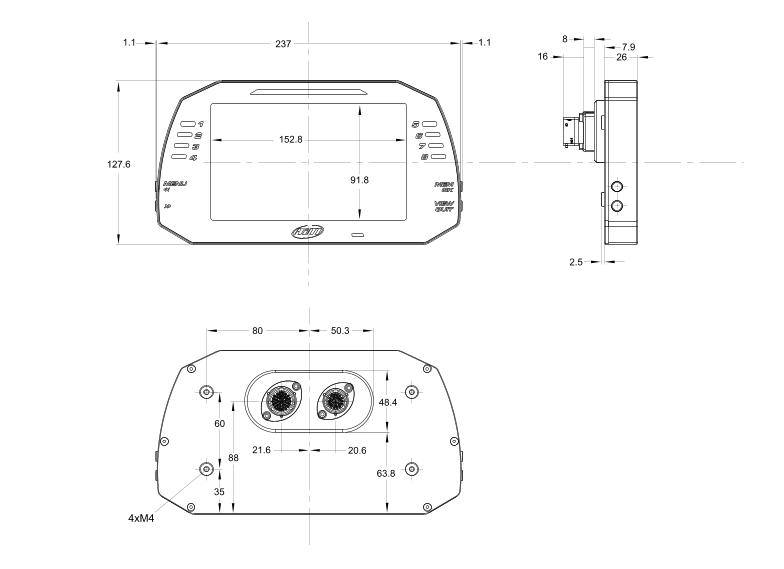

    Technical drawing MXP
    Technical specifications
    Display 6" TFT
    Resolution 800x480 pixels
    Contrast 600:1
    Brightness 700cd/m2 - 1,100 Lumen
    Ambient light sensor Yes
    Alarms LEDs 5 RGB freely configurable
    Shift light 10 integrated freely configurable RGB LEDs
    CAN connections 3
    ECU connections CAN, RS232 or K-Line
    ECU compatibility + 1,000 industry leading ECUs
    Expansion CAN connection GPS, Channel Expansion, Thermocouple Expansions, Lambda Controller, SmartyCam HD
    Analog inputs 8 fully configurable, max 1,000 Hz each
    Digital inputs 4 speed input, lap signal, coil RPM input
    Digital outputs 2 (1 Amp max)
    Second CAN Yes
    WiFi connection Yes
    Accelerometer Internal Three-axis 5G + Gyroscope + magnetometer
    Internal memory 4 GB
    Body Anodized Aluminum
    Pushbuttons Metallic
    Connectors 2 Motorsport connectors
    Dimensions 189.6x106.4x24.9 mm
    Weight 640 g
    Power consumption 400 mA
    Waterproof IP65
    In the box
    MXP
    GPS Module with cable
    USB cable
    37 pin standard harness
    Race Studio 3
