    Production Quality One-Step Crimp Die ( Crimps Copper & Seal in one cycle ) for 22-16 AWG ( .35mm2 - 1.25mm2 ) for Ford /Yazaki for EPC 1.5mm Female Terminals Part # TOOL-00933

    Production Quality <u><b>One-Step</b></u> Crimp Die ( Crimps Copper & Seal in one cycle ) for 22-16 AWG ( .35mm2 - 1.25mm2 ) for Ford /Yazaki for EPC 1.5mm Female Terminals
    Pricing
    1 + $309.99
    5 + $299.00
    Information
    Bmotorsports Part # TOOL-00933
    Availability In Stock
    Qty. Available 2
    Shipping Weight 0.38 Lbs.
    Shipping Location VA   (Shipping Info)
    Ship Estimator Quantity:

    Description

    This is a production quality hand crimp tool that can be purchased for the terminals listed below. Includes crimp die set, and terminal locator to aid in the production of crimps. No wirestop is included with this particular die set.

    For use with Ford/Yazaki for EPC Terminals:
    CONN-100481 20-16AWG Female
    CONN-100481 equivalent female terminal for 22-20AWG
    CONN-100986 20-16AWG Male Terminal
    CONN-100986 equivalent male terminal for 22-20AWG

    Must be used with the following crimp handles:
    Production Quality Hand Crimper

    Example pictures of crimper with dies are below. Crimper is sold seperately.




    Terminal technical info:

    Terminal P/N 7116-4102-02 7116-4102-08 7116-4102-06 7116-4103-02 7116-4103-08 7116-4103-06

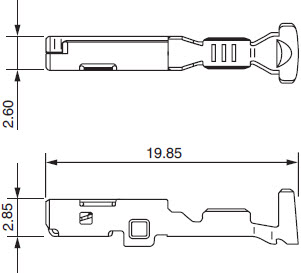

    Picture (Unit: mm) Yazaki Female terminal
    Gender Female
    Plating Sn Au AG Sn Au AG
    Europe (SQ-MM) 0.35 - 0.5   0.75 - 1.0
    USA (AWG) 22 - 20   18 - 16
    Japan (SQ-MM) 0.3 - 0.5   0.85 - 1.25


    Terminal P/N

    7114-4102-02
    (97BG-14421-ADA)

    7114-4102-08
    (97BG-14421-AHA)
    7114-4102-06
    (EU5T-14421-TA)
    7114-4103-02
    (97BG-14421-AEA)
    7114-4103-08
    (97-BG-14421-AJA)
    7114-4103-06
    (EU5T-14421-UA)
    Picture (Unit: mm)

    Yazaki Male terminal


    Gender Male
    Plating

    Sn

    Au AG Sn Au AG
    Europe (SQ-MM) 0.35 - 0.5   0.75 - 1.0
    USA (AWG) 22 - 20   18 - 16
    Japan (SQ-MM) 0.3 - 0.5   0.85 - 1.25
