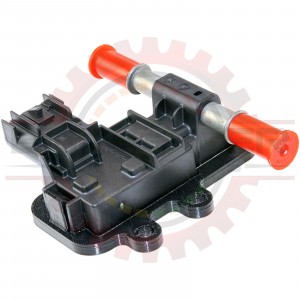

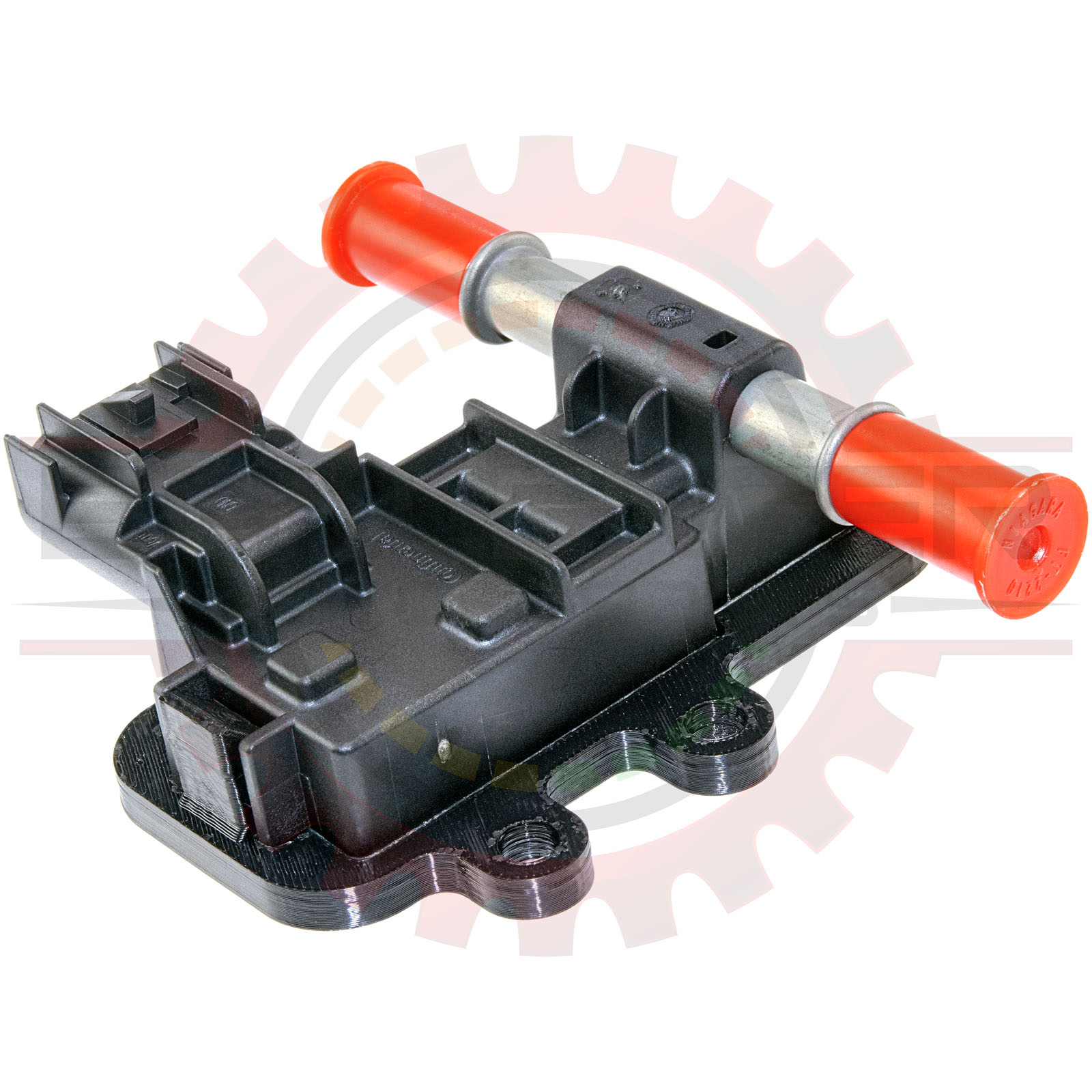

    Continental Ethanol Content Sensor / Flex Fuel Sensor Kit Part # SNSR-25032

    Continental Ethanol Content Sensor / Flex Fuel Sensor Kit Continental Ethanol Content Sensor / Flex Fuel Sensor Kit Continental Ethanol Content Sensor / Flex Fuel Sensor Kit Continental Ethanol Content Sensor / Flex Fuel Sensor Kit Continental Ethanol Content Sensor / Flex Fuel Sensor Kit
    Pricing
    1 + $99.99
    10 + $94.99
    100 + Call for Pricing
    Information
    Bmotorsports Part # SNSR-25032
    Availability In Stock
    Shipping Weight 0.48 Lbs.
    Shipping Location VA   (Shipping Info)
    Options
    Connector Option
    Fuel Fittings
    Ship Estimator Quantity:

    Description


    Genuine Continental Ethanol Content Sensor / Flex Fuel Sensor Kit.

    Comes with Connector Kit OR Connector Pigtail.

    With Connector Kit, terminals and seals ARE included. You will need to perform your own wire terminations.

    With Connector Pigtail, it is preassembled and includes connector, seals, and terminals already crimped on 12 inch wire leads.

    The market is flooded with Chinese knock-off versions of this part, get yours from a trusted supplier of genuine parts!

    This flow-through sensor allows ethanol content analysis of fuel to get the perfect fueling required. Works with many aftermarket ECUs & tuning systems.
    Equivalent to:

    Zeitronix ECA KIT

    Haltech HT-011000

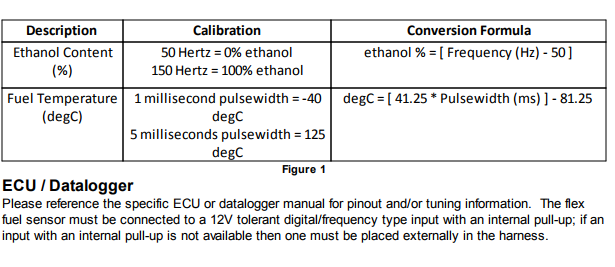

    Specifications

    Description Calibration Conversion Formula
    Ethanol Content (%) 50 Hertz = 0% Ethanol
    150 Hertz = 100% Ethanol
    ethanol % = [ Frequency (Hz) - 50 ]
    Fuel Temperature °C 1 millisecond pulsewidth = -40 °C
    5 milliseconds pulsewidth = 125 °C
    °C = [ 41.25 * Pulsewidth (ms) ] - 81.25
    Description Value
    Battery Voltage 9 to 18 V
    Maximum flow 400 liters per hour
    Operating Temperature -40 to 150 °C
    *Sensor Output (12V) Pull-Up Resistor 2.2 - 10.0 kOhm


    *****Please consult the appropriate manufacturer when using the content sensor with third party devices. A resistor (2.2 - 10.0 kOhm) may need to be placed between pins 1 (Vout - Sensor Output) and 3 (Vcc - Battery 12V)



    Sensor Transfer Function:

    FrequencyCounts% ETOH
    3220480
    5013110
    60109210
    7093620
    8081930
    9072840
    10065550
    11059660
    12054670
    13050480
    14046890
    150437100
    160410100
    170386100
    The sensor output pulsewidth varies with temperature so you may capture that as well to do any calculations based on the ETOH content (Ethanol has a liquid to vapor point of 146F)



    This product contains the following items:
    GM Delphi / Packard - GT 150 Female Terminal ( 20 - 16 gauge )» 4 x GM Delphi / Packard - GT 150 Female Terminal ( 20 - 16 gauge )
    Part # CONN-56456
    GM Delphi / Packard - GT 150 Cable Seal, White ( 24 - 18 gauge )» 4 x GM Delphi / Packard - GT 150 Cable Seal, White ( 24 - 18 gauge )
    Part # CONN-56555
    GM Delphi / Packard - 3-Way GT 150 Plug for Fuel Sensor Applications» 1 x GM Delphi / Packard - 3-Way GT 150 Plug for Fuel Sensor Applications
    Part # CONN-100656
    GM Delphi / Packard - 3-Way GT 150 TPA» 1 x GM Delphi / Packard - 3-Way GT 150 TPA
    Part # CONN-95602
    Continental Ethanol Content Sensor / Flex Fuel Sensor» 1 x Continental Ethanol Content Sensor / Flex Fuel Sensor
    Part # SNSR-25030
