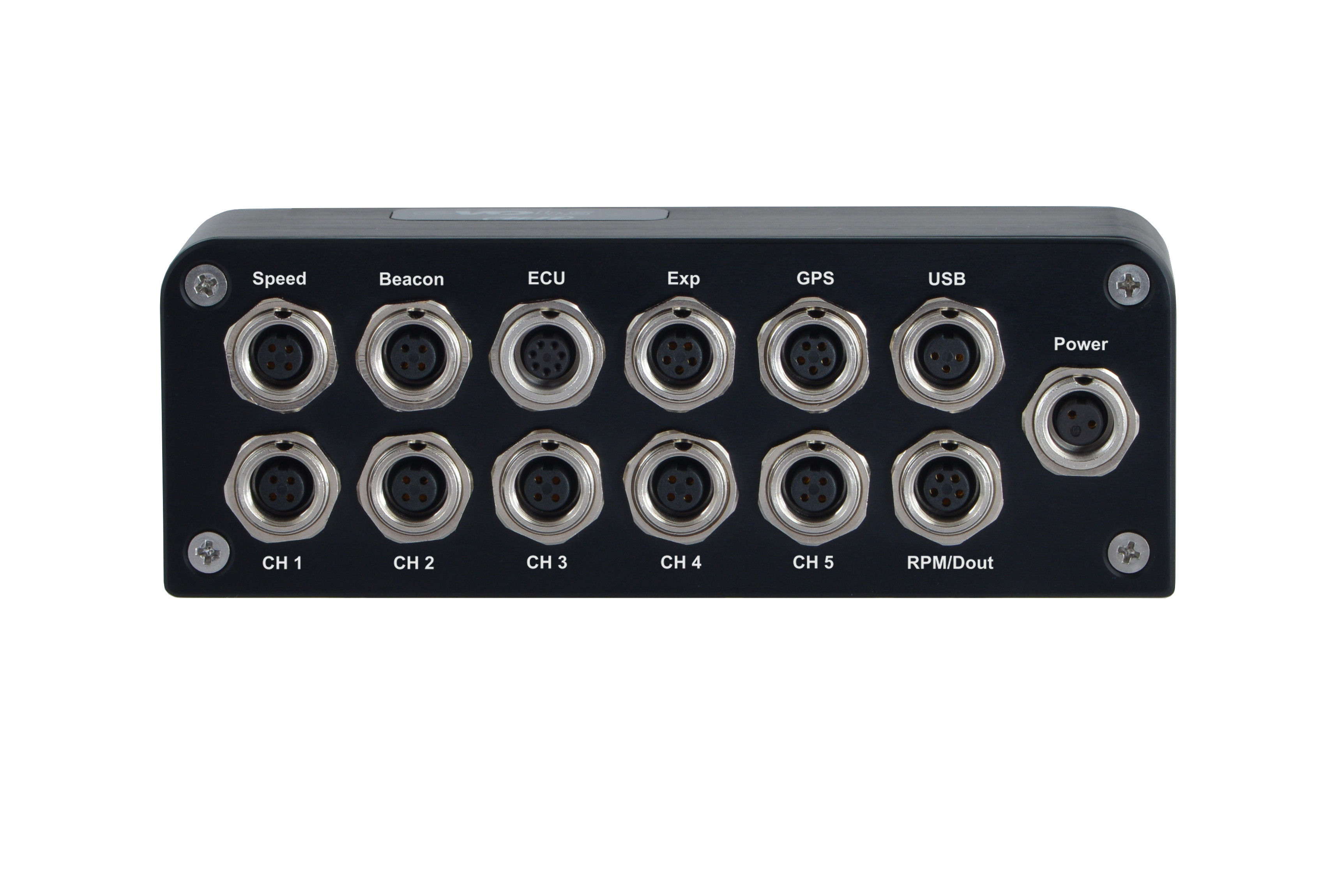

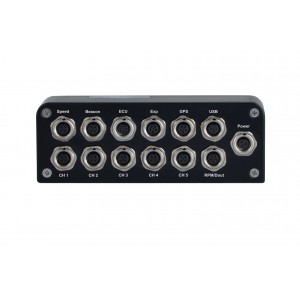

    AiM EVO4S Part # SNSR-05074

    AiM EVO4S AiM EVO4S
    Pricing
    1 + $1,349.00
    Information
    Bmotorsports Part # SNSR-05074
    Availability Special Order
    Shipping Weight 2 Lbs.
    Shipping Location VA   (Shipping Info)
    Ship Estimator Quantity:

    Description

    EVO4S
    The powerful and flexible datalogger
    A wide range of sources for your data
    EVO4S is the evolution of the well known EVO4.
    It maintains the same connection logic, one connector per channel, but with a completely redesigned internal electronic board, fully compatible with the last generation of AiM dashloggers and with the new powerful Race Studio 3 software.
    EVO4S samples all the information you need: data coming from your vehicle ECU via CAN, RS232 or K-line, from the internal accelerometers and gyro, from the GPS08 Module included in the kit.
    And from analog/digital inputs, external expansions as well as predefined math channels. Sensors can be connected to 5 configurable analog channels, to the RPM input and to 2 wheel speed inputs.
    Sensors
    Many sensors can be connected to EVO4S via:
    5 analog channels with configurable 12 bit 0-5 Volt, 0-500 mV, 0-50 mV inputs or thermocouple input, used to sample data coming from temperature, pressure, suspension and other kinds of sensors.
    2 speed inputs, which allow to monitor the different wheels behavior.
    1 RPM input, which manages square wave signals transmitted by the ECU, or pulse signals picked from the coil command (low voltage).
    Internal three-axial accelerometer and gyro sensor
    A built-in inertial platform lets you have the most powerful system for understanding oversteering,
    understeering, banking, etc.
    Digital output
    EVO4S features a LOW SIDE type (switch to ground)
    digital output. You can configure it in order
    to turn it on or off depending on the value
    of the analog or digital inputs, ECU values,
    expansion values, GPS information or math channels.
    CAN output
    With the CAN Output you can send messages
    directly to an existing CAN network in order
    to improve the range of vehicle control possibilities.
    Expand your EVO4S as much as you need
    Add expansion modules via our built-in CAN bus:

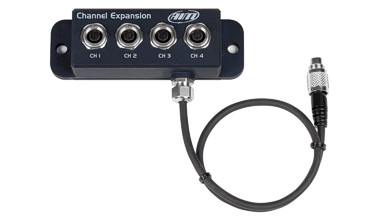

    Channel Expansion
    It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.
    Channel Expansion
    LCU-One CAN
    Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.
    LCU-One CAN
    SmartyCam HD cameras
    The on-board cameras that overlays on videos the data sampled by your logger.
    SmartyCam HD Rev.2

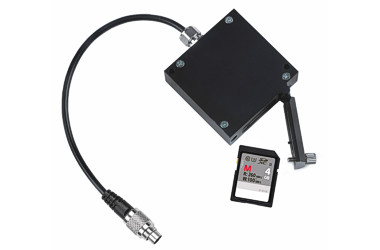

    Memory Module
    The Memory Module is a small SD Card holder that can be connected via CAN bus to your AiM logger in order to record the data during your tests.
    Memory Module
    ... and all sensors you may need to improve the EVO4S performance.

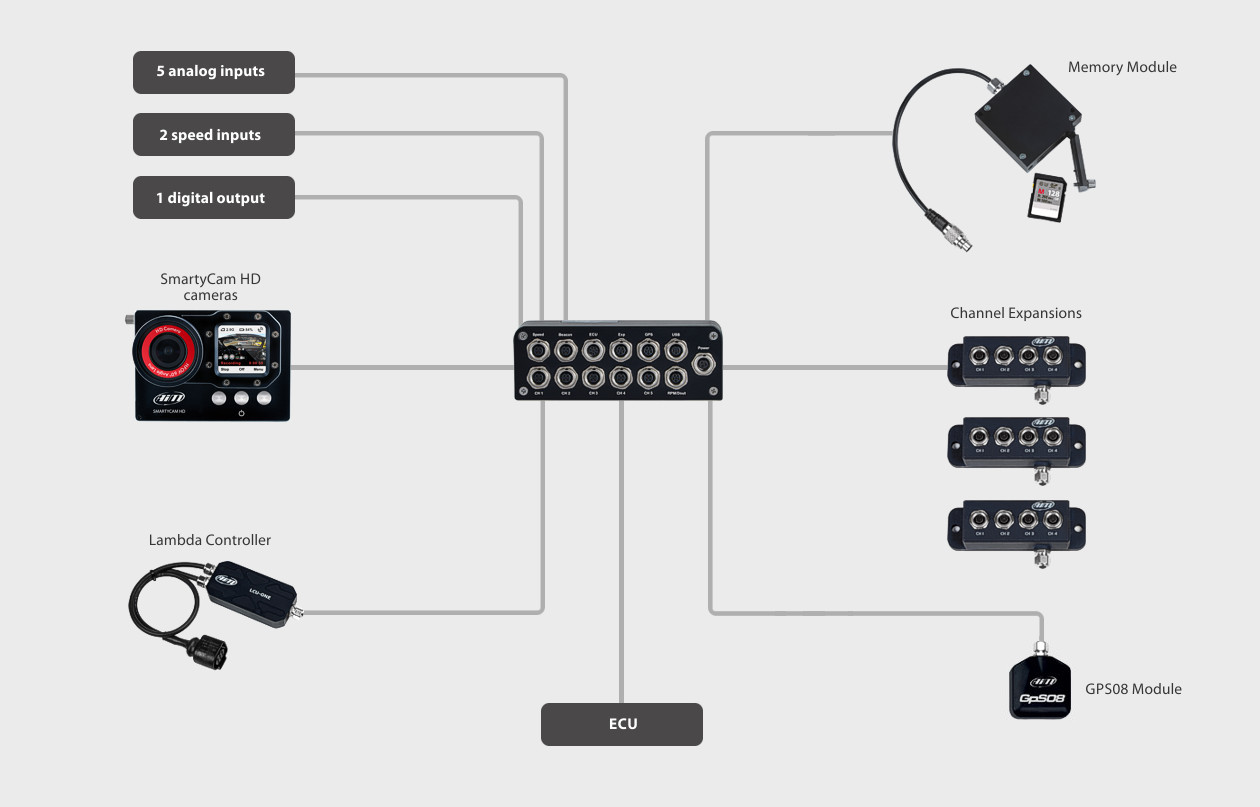

    Connection example
    Available displays
    To visualize in real time all the data,
    EVO4S can be connected to the visor
    GS-Dash or to the Formula Steering Wheel 3,
    our professional steering wheel
    for Formula and Sports cars.
    Download your data to a PC for a professional data analysis

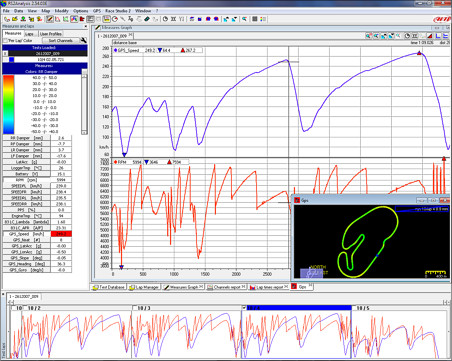

    Data recorded by EVO4S can be downloaded to PC and analyzed with the professional Race Studio Analysis software: graphs, histograms and tables will help you evaluate your performance, providing an objective support to avoid mistakes and improve your driving technique.
    Connection kits for sports bikes
    AiM designed specific applications to allow easy installation and connection of EVO4S on sports bikes.
    Installation kits for Ducati, Honda, Kawasaki, and Suzuki are currently available. More will follow.
    Ducati Honda Kawasaki Suzuki
