AEM Infinity 7 Series Connector Plug n Pin Kit	Part # CONN-200077

Pricing
1 +	$84.99
Information
Bmotorsports Part #	CONN-200077
Availability	In Stock
Shipping Weight	0.7 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

AEM Infinity 7 Series Connector Plug n Pin Kit. Connector Kit. A kit comprising of housing pair, rear wire dress covers, cavity plugs, terminals, and applicable wire seal are included for a full install. One size 2.8 cavity, 72 size 0.64 cavities on the grey keyway connector, 56 size 0.64 cavities on the blue keyway connector.
Also used on some GM E series ECU's

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
2.8 Terminal	CONN-100312	Yazaki 2.8 Female Terminal for E67 ECM's
2.8 Wire seal	CONN-100848	Yazaki YESC 2.8 Seal for AEM Infinity, GM E67 ECM
064 Terminal 0.5-0.85mm²	CONN-100280	Molex MX64 Series Female Terminals 0.5 - 0.85mm2 (20 - 18 AWG) GM 13575575
064 Terminal 0.35mm²	CONN-100678	Molex MX64 Series Female Terminals 0.35mm² (22 AWG)
064 Cavity Plug	CONN-100694	Molex Cavity Plug MX123 0.64
Accessory Parts
Connector, blue keyway 56 position	CONN-100685	56 Way ECU Connector Plug
Connector, grey keyway 73 position	CONN-100687	73 Way Gray Keyway ECU Plug Connector
Wire Cover, 56 way	CONN-100692	Molex Rear Wire Dress Cover, 56 way
Wire Cover, 73 way	CONN-100693	Molex Rear Wire Dress Cover, 73/80 way

Specifications

Parameter Value
Gender Plug/Male
Terminal Size 0.64mm
Terminal Size (Secondary) 2.8mm
Terminal Type Flat
Terminal Type (Secondary) Flat
Min. Wire Gauge 14
Max. Wire Gauge 22

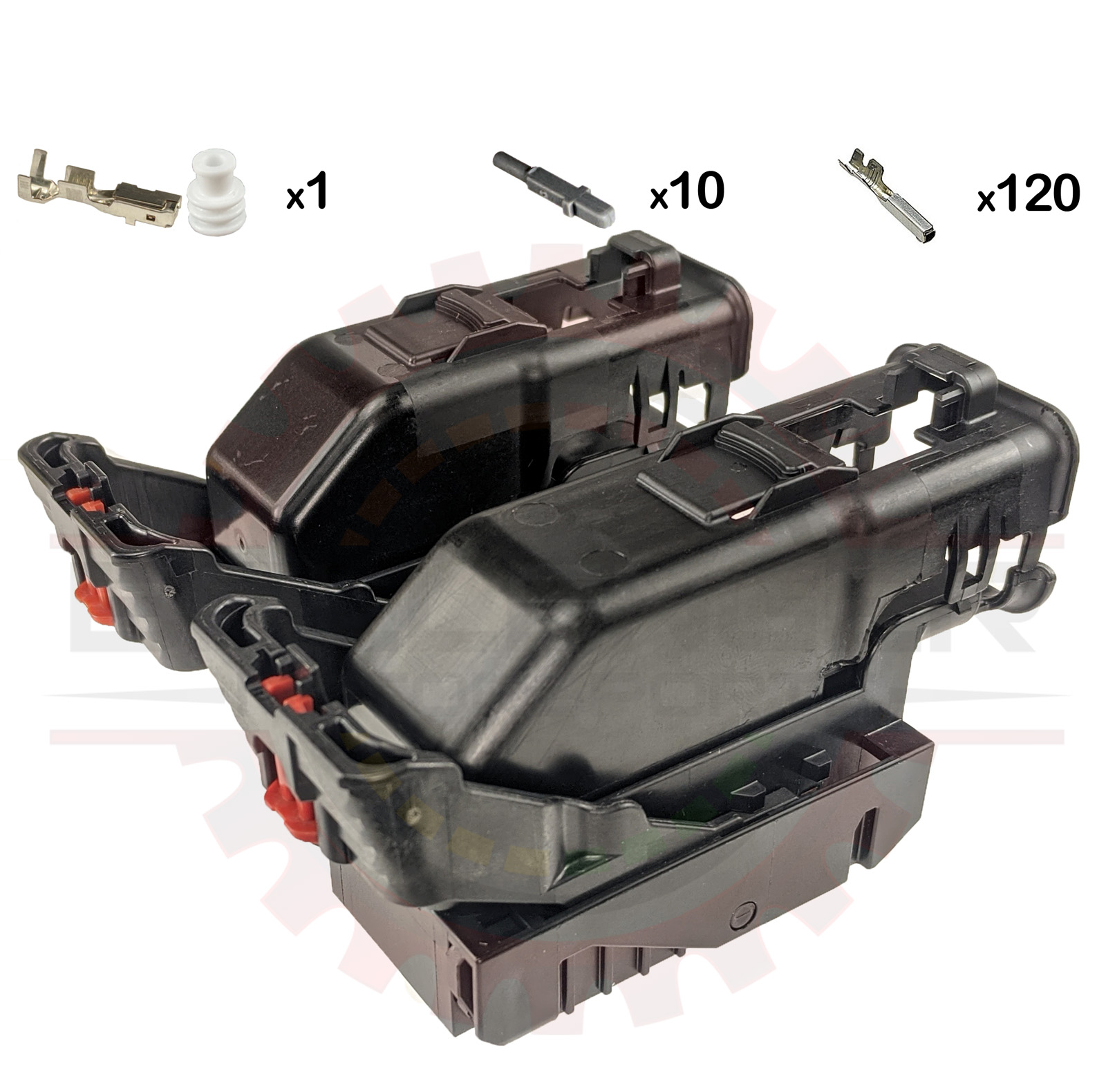

This product contains the following items:
	» 120 x Molex MX64 Series Female Terminals 0.5 - 0.85mm2 (20 - 18 AWG) GM 13575575 Part # CONN-100280
	» 1 x Yazaki YESC 2.8 Seal for AEM Infinity, GM E67 ECM Part # CONN-100848
	» 10 x Molex Cavity Plug MX123 0.64 Part # CONN-100694
	» 1 x Molex Rear Wire Dress Cover, 73/80 way Part # CONN-100693
	» 1 x Molex Rear Wire Dress Cover, 56 way Part # CONN-100692
	» 1 x 73 Way Gray Keyway ECU Plug Connector Part # CONN-100687
	» 1 x Yazaki 2.8 Female Terminal for E67 ECM's Part # CONN-100312
	» 1 x 56 Way ECU Connector Plug Part # CONN-100685
