** Special Note: In performing a stock check, we found 21 overlooked injectors which were in engineering. They are new and will be listed on clearance here. (normally $139.99!) We have four left!
If your application is CNG, you may still use CNG Injector - MOTR-04663 (click here).
If your application is liquid fuel flow such as petrol, alcohol, methanol, e85 or other types of liquid fuel, we are recommending Injector Dynamics ID 2000 Injectors - MOTR-05189 (click here) or Injector Dynamics ID 1700 Injectors - MOTR-05207(click here) or Siemens Deka 220lb/hr Injectors - MOTR-04562 (click here)**
** Note: From 2011 onward, Bosch is delivering 0280150846 & 0280150842 & 0280150843 interchangeably as they are the same injector with the same performance characteristics but have a different part number due to the color of the top plastic portion.**

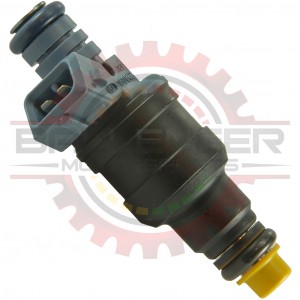

Genuine Bosch 1680 cc/min ( 160 lb/hr ) Low Impedance Injectors ( Alcohol Compatible )
These injectors flow 1600 cc/min at 43.5 PSI ( 3 BAR ) and are fully compatible with alternate fuels and alcohol! Some websites may refer to their flow rating as 160 lb/hr or 150 lb/hr or 1680 cc/min Bosch Low Impedance Injectors. Frequently used in racing, flex fuel applications and alternate fuel applications, these low impedance injectors combine extremely high flow rates with excellent response at low pulse widths! This allows you to use a larger injector than normally possible without hurting idle and low speed driveability.
These injectors are able to function at high fuel pressures and donít exhibit the high fuel pressure handling problems found with many other high flow high-impedance injectors. This makes these injectors very well suited to turbocharged and supercharged applications that see high fuel system pressures.
- Genuine, reliable, new Bosch Injectors
- Excellent response characteristics
- Robust Design
- Low Impedance
Equivalent Part Numbers:
- Coil Resistance: 4.5 Ohms / Low Impedance
- Static Flow Rate @ 43.5PSI ( 300kPa ) w/Gas: 1600 cc/min = 152 lb/hr
- Connector: Bosch EV1
- Bosch 0280150846 - 0 280 150 846 OR
- Bosch 0280150842 - 0 280 150 842 OR
- Bosch 0280150843 - 0 280 150 843
- Accel 74160
- FAST 3016000, 3016004, 3016006, 3016008
- Marren 05160
