    Tyco MCP 6.3 (630) High Current Sealed Relay Kit SPDT 40 AMP Part # CONN-75574

    Tyco MCP 6.3 (630) High Current Sealed Relay Kit SPDT 40 AMP Tyco MCP 6.3 (630) High Current Sealed Relay Kit SPDT 40 AMP Tyco MCP 6.3 (630) High Current Sealed Relay Kit SPDT 40 AMP
    Pricing
    1 + $18.99
    25 + $17.99
    50 + $17.49
    100 + $16.99
    Information
    Bmotorsports Part # CONN-75574
    Availability In Stock
    Shipping Weight 0.23 Lbs.
    Shipping Location VA   (Shipping Info)
    Ship Estimator Quantity:

    Description

    Tyco MCP 6.3 (630) High Current Sealed Relay Kit SPDT 40 AMP
    Introducing our new push to seat style relay connector kit, using the same high-quality Panasonic Omron relay of the previous kit!

    This relay kit is offered at a lower price than the previous pull-to-seat version. This new kit uses the much more recent TE MCP 6.3 (Multiple contact point 6.3mm) series for a cost effective push to seat relay base over the Metri-Pack 630 pull to seat style. If you are still using older tooling, you are able to special order the pull-to-seat style relay kit here: CONN-75574-CK-PTS - GM / Delphi Sealed Metri-Pack ( Metripack ) 630 High Current Sealed Relay Kit SPDT 40 AMP

    If you require new tooling for the MCP 6.3 series, please contact us!


    Associated & Mating Parts

    Relationship Part # Description
    Associated Connectors
    Panasonic SPDT 40A 12V Relay CONN-32555GM / Delphi SPDT Relay, 40AMP, 12volt with skirt for sealing MP 630
    TE Relay Base CONN-100344Tyco MCP 6.3 (630) High Current Sealed Relay Connector Base
    MCP 6.3 20-18 AWG Terminals CONN-100331Tyco MCP 6.3 (630) Female Terminal, 0.5-1.0 mm2 wire range
    MCP 6.3 16-14 AWG Terminals CONN-100332Tyco MCP 6.3 (630) Female Terminal, 1.5-2.5mm2 wire range, Tin plated
    MCP 6.3 12-10 AWG Terminals CONN-100333Tyco MCP 6.3 (630) Female Terminal, 4mm2 wire range, Tin plated
    Metri-Pack 480 20-14 AWG Seals CONN-100335GM Delphi / Packard - Metri-Pack 480 Wireseal for 20-14AWG
    Metri-Pack 480 12-10 AWG Seals CONN-100336GM Delphi / Packard - Metri-Pack 480 Wireseal for 14-10AWG
    Metri-Pack 480 Cavity Plug CONN-100338GM Delphi / Packard - Metri-Pack 480 Cavity Plug
    Tyco MCP 6.3 High Current Sealed Relay Kit SPDT 40 AMP - Push To Seat CONN-75574Tyco MCP 6.3 (630) High Current Sealed Relay Kit SPDT 40 AMP
    Obsolete Connectors
    Pull To Seat Relay Base Connector CONN-32556GM Delphi / Packard Metri-Pack ( Metripack ) 630 Sealed Mini Relay Connector (connector only, pull to seat)
    Pull To Seat Relay Base CPA CONN-32557GM Delphi / Packard - CPA for Metri-Pack ( Metripack ) 630 and 280 connectors
    MP630 P2S 12-10 AWG Terminals CONN-32558GM Delphi / Packard - 630 Metri-Pack ( Metripack ) Female Terminal ( 12 - 10 gauge ) [Pull to Seat]
    MP630 P2S 16-14 AWG Terminals CONN-32559GM Delphi / Packard - 630 Metri-Pack ( Metripack ) Female Terminal ( 16 - 14 gauge ) [Pull to Seat]
    MP630 P2S 20-18 AWG Terminals CONN-32560GM Delphi / Packard - 630 Metri-Pack ( Metripack ) Female Terminal ( 20 - 18 gauge ) [Pull to Seat]
    Micropack 100w Cavity Plug CONN-56359GM Delphi / Packard - Micropack 100W Seal (Cavity) Plug
    GM / Delphi Sealed Metri-Pack ( Metripack ) 630 High Current Sealed Relay Kit SPDT 40 AMP CONN-75574-CK-PTSGM / Delphi Sealed Metri-Pack ( Metripack ) 630 Pull-To-Seat High Current Sealed Relay Kit SPDT 40 AMP

    Specifications

    Parameter Value
    Number of Ways5
    GenderPlug/Male

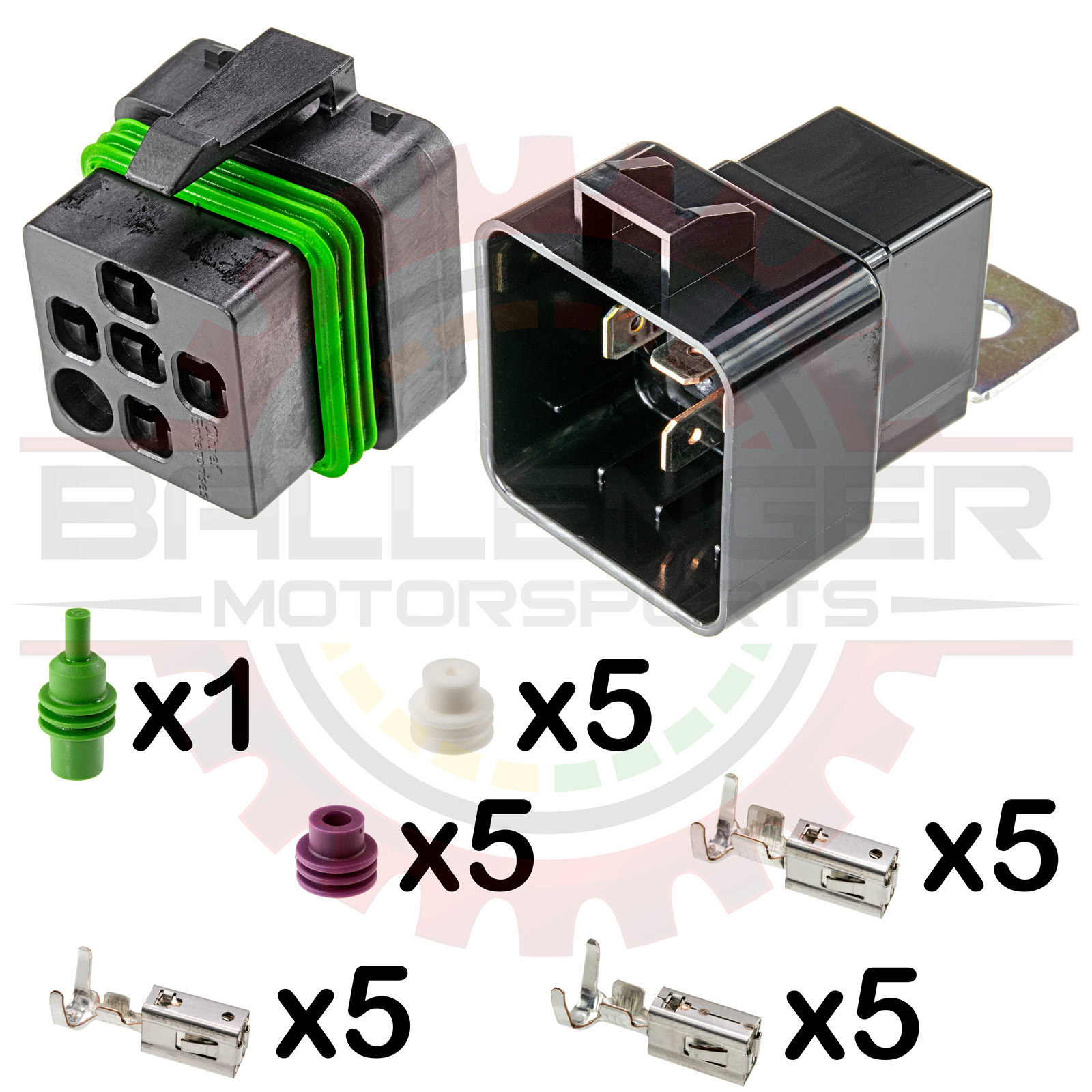

    This product contains the following items:
    GM / Delphi SPDT Relay, 40AMP, 12volt with skirt for sealing MP 630» 1 x GM / Delphi SPDT Relay, 40AMP, 12volt with skirt for sealing MP 630
    Part # CONN-32555
    GM Delphi / Packard - Metri-Pack 480 Cavity Plug» 1 x GM Delphi / Packard - Metri-Pack 480 Cavity Plug
    Part # CONN-100338
    GM Delphi / Packard - Metri-Pack 480 Wireseal for 20-14AWG» 5 x GM Delphi / Packard - Metri-Pack 480 Wireseal for 20-14AWG
    Part # CONN-100335
    GM Delphi / Packard - Metri-Pack 480 Wireseal for 14-10AWG» 5 x GM Delphi / Packard - Metri-Pack 480 Wireseal for 14-10AWG
    Part # CONN-100336
    Tyco MCP 6.3 (630) High Current Sealed Relay Connector Base» 1 x Tyco MCP 6.3 (630) High Current Sealed Relay Connector Base
    Part # CONN-100344
    Tyco MCP 6.3 (630) Female Terminal, 0.5-1.0 mm2 wire range» 5 x Tyco MCP 6.3 (630) Female Terminal, 0.5-1.0 mm2 wire range
    Part # CONN-100331
    Tyco MCP 6.3 (630) Female Terminal, 1.5-2.5mm2 wire range, Tin plated» 5 x Tyco MCP 6.3 (630) Female Terminal, 1.5-2.5mm2 wire range, Tin plated
    Part # CONN-100332
    Tyco MCP 6.3 (630) Female Terminal, 4mm2 wire range, Tin plated» 5 x Tyco MCP 6.3 (630) Female Terminal, 4mm2 wire range, Tin plated
    Part # CONN-100333
